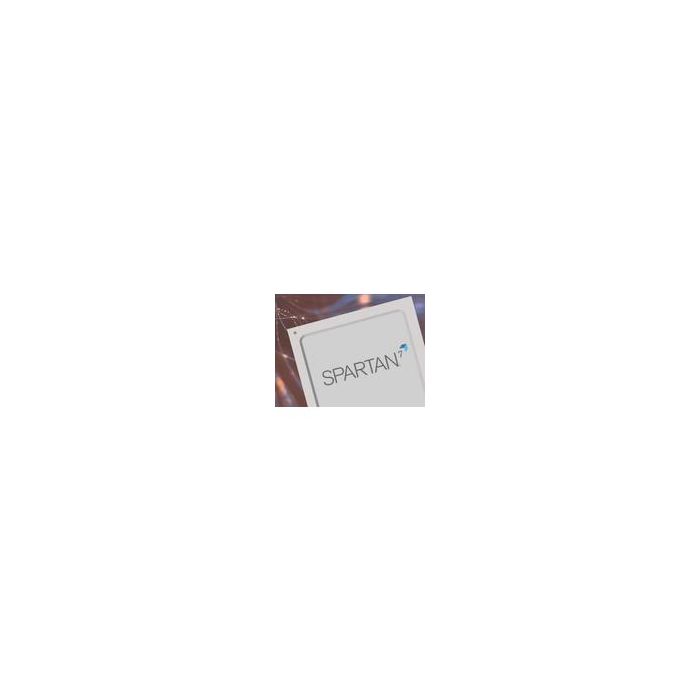

XC6SLX45T-3FGG484I
| Do pobrania | Download |
|---|---|
| Main description | FPGA Spartan®-6 LXT Family 43661 Cells 45nm Technology 1.2V 484-Pin FBGA |
FPGA Spartan®-6 LXT Family 43661 Cells 45nm Technology 1.2V 484-Pin FBGA
Informacje podstawowe
- ProducentXilinx
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 2731
- Inventory 3
- PCNs 26
- MaskPart XC6SLX45T3FGG484I%
- IntroductionDate Feb 02, 2009
- EnablingEnergyEfficiency Yes
- Sourceofinformation_EE http://download.siliconexpert.com/pdfs/2010/8/12/19/45/38/781/xil_/auto/qar-case-studies.pdf
Parametry
- Copy Protection Yes
- Dedicated DSP 58
- Device Logic Cells 43661
- Device Logic Gates N/A
- Device Logic Units 43661
- Device Number of DLLs/PLLs 12
- Device System Gates N/A
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name Spartan®-6 LXT
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) 1.8|2.5
- In-System Programmability No
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 410624
- Maximum I/O Performance 3.125Gbps
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 296
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Mega Multiply Accumulates per second N/A
- Minimum Storage Temperature (°C) -65
- Number of Global Clocks 16
- Number of I/O Banks 4
- Number of Inter Dielectric Layers N/A
- Number of Multipliers 116 (18x18)
- Number of Registers 54576
- PCI Blocks 1
- Process Technology 45nm
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability Yes
- RAM Bits (Kbit) 2088
- Reprogrammability Support Yes
- Shift Registers Utilize LUT
- Speed Grade 3
- Supplier Temperature Grade Industrial
- Temperature Flag Jun
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM 116
- Tradename Spartan
- Transceiver Blocks 4
- Transceiver Speed (Gbps) 3.2
- Typical Supply Current (mA) N/A
