XC164CM16F40FBAKXQMA1
| Do pobrania | Download |
|---|---|
| Main description | MCU 16-bit C166 CISC/DSP/RISC 128KB Flash 2.5V/5V Automotive 64-Pin LQFP Tray |

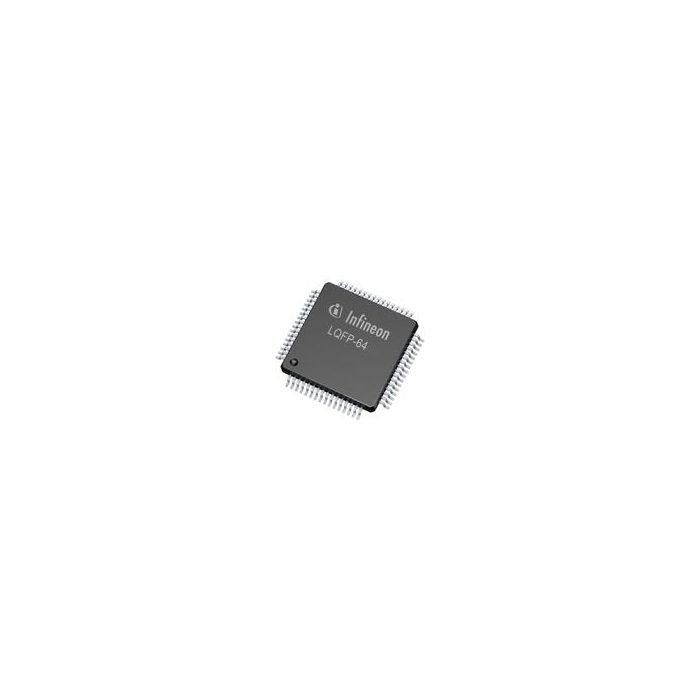

MCU 16-bit C166 CISC/DSP/RISC 128KB Flash 2.5V/5V Automotive 64-Pin LQFP Tray
Informacje podstawowe
- ProducentInfineon Technologies AG
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Inventory 2
- PCNs 12
- MaskPart XC164CM16F40FBAKXQMA1%
- IntroductionDate May 01, 2005
- SupplierUrl http://www.infineon.com/cms/en/product/findProductTypeByName.html?q=XC164CM16F40FBAKXQMA1
Parametry
- ADC Channels 14
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 2
- Core Architecture N/A
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 16
- Data Memory Size N/A
- Device Core C166
- Display Driver N/A
- Ethernet 0
- Family Name XC166
- I2C 0
- I2S 0
- Instruction Set Architecture CISC|DSP|RISC
- Interface Type CAN/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 40
- Maximum Clock Rate (MHz) 40
- Maximum Expanded Memory Size 16MB
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 47
- Number of Timers 5
- PWM 1
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 8KB
- SPI 2
- Special Features CAN Controller
- Supplier Temperature Grade Automotive
- Temperature Flag Opr
- UART 0
- USART 2
- USB 0
- Watchdog 2
