ULN2069LB-T
| Do pobrania | Download |
|---|---|
| Main description | Trans Darlington NPN 80V 1.75A 20-Pin SOIC W T/R |

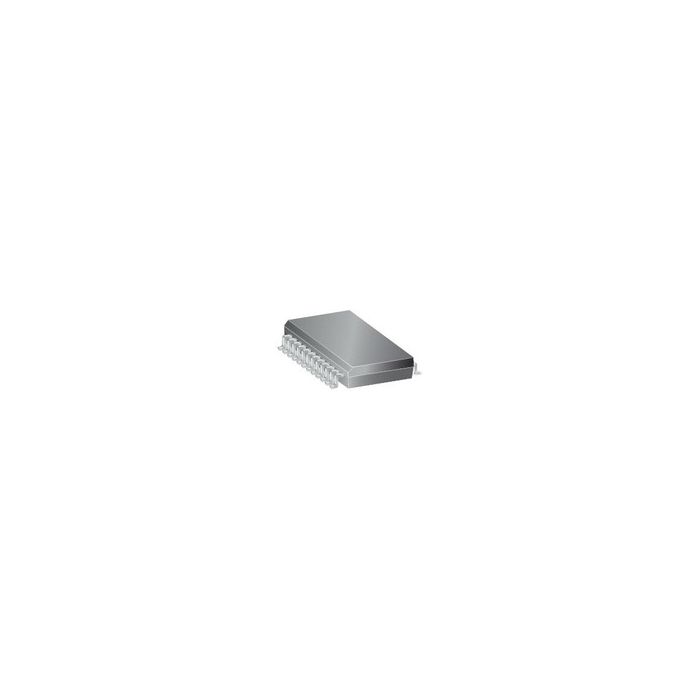

Trans Darlington NPN 80V 1.75A 20-Pin SOIC W T/R
Informacje podstawowe
- ProducentAllegro MicroSystems
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 1*
- PCNs 2
- MaskPart ULN2069LB%
- IntroductionDate Sep 28, 2000
- EnablingEnergyEfficiency No
- SupplierUrl http://www.allegromicro.com/SearchResults.aspx?q=ULN2069LB-T
Parametry
- Configuration Quad
- Maximum Base Emitter Saturation Voltage (V) N/A
- Maximum Collector Base Voltage (V) N/A
- Maximum Collector Cut-Off Current (uA) 100
- Maximum Collector-Emitter Saturation Voltage (V) 1.1@500mA|1.2@750mA|1.3@1A|1.4@1.25A|1.5@1.5A
- Maximum Collector-Emitter Voltage (V) 80
- Maximum Continuous DC Collector Current (A) 1.75
- Maximum Emitter Base Voltage (V) N/A
- Maximum Power Dissipation (mW) N/A
- Minimum DC Current Gain N/A
- Number of Elements per Chip 4
- Supplier Temperature Grade N/A
- Type NPN
- Typical Current Gain Bandwidth (MHz) N/A
