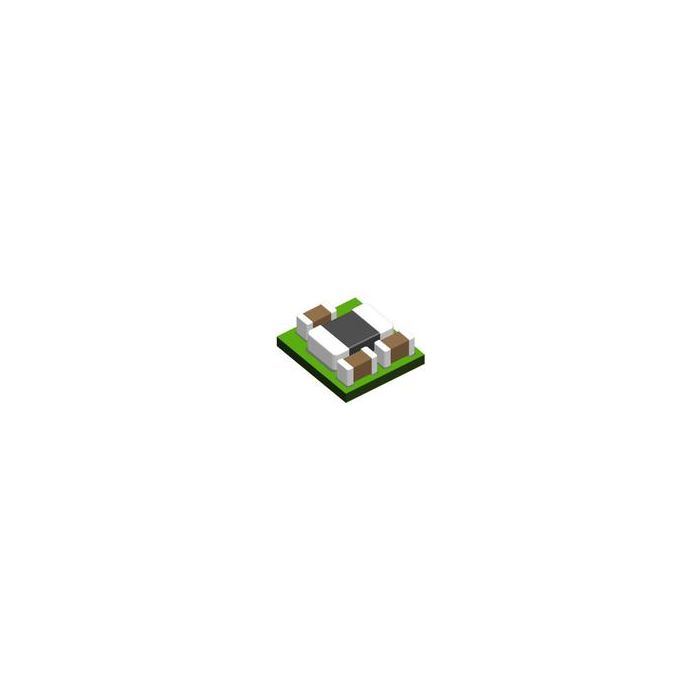

TPS82740BSIPR
| Do pobrania | Download |
|---|---|
| Main description | Module DC-DC 1-OUT 2.6V to 3.3V 0.2A 9-Pin uSIP T/R |
Module DC-DC 1-OUT 2.6V to 3.3V 0.2A 9-Pin uSIP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 4
- PCNs 39
- MaskPart TPS82740BSIPR%
- IntroductionDate Jun 19, 2014
Parametry
- Efficiency (%) 90
- Isolation N/A
- Line Regulation 0%/V(Typ)
- Load Regulation 0.001%/mA(Typ)
- Maximum Input Voltage (V) 5.5
- Maximum Output Current (A) 0.2
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 125
- Minimum Input Voltage (V) 2.2
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -55
- Number of Outputs 1
- On/Off Logic N/A
- Output Type Adjustable
- Output Voltage (V) 2.6 to 3.3
- Process Technology N/A
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) N/A
- Switching Regulator Yes
- Tradename N/A
- Type Step Down
- Typical Input Voltage (V) N/A
- Typical Standby Current (mA) N/A
