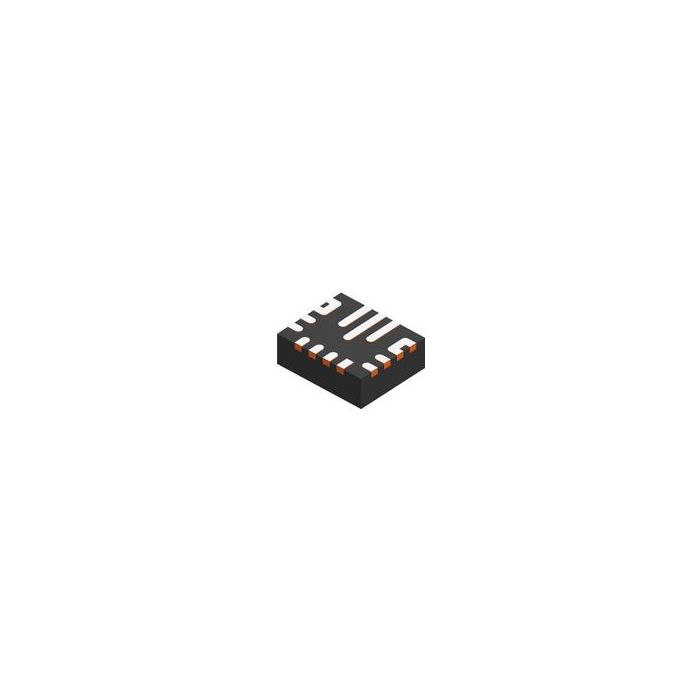

TPS63070RNMR
| Do pobrania | Download |
|---|---|
| Main description | Conv DC-DC 2V to 16V Step Down/Step Up Single-Out 2.5V to 9V 2A 15-Pin VQFN-HR T/R |
Conv DC-DC 2V to 16V Step Down/Step Up Single-Out 2.5V to 9V 2A 15-Pin VQFN-HR T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 5
- PCNs 39
- MaskPart TPS63070RNM%
- IntroductionDate Mar 14, 2019
Parametry
- Efficiency (%) 95
- Isolation N/A
- Line Regulation 0.07%/V(Typ)
- Load Regulation 0.2%/A(Typ)
- Maximum High Level Output Voltage (V) N/A
- Maximum Input Voltage (V) 16
- Maximum Low Level Output Voltage (V) N/A
- Maximum Output Current (A) 2
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 2
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 2.5 to 9
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 2400(Typ)
- Switching Regulator Yes
- Technology N/A
- Type Step Down|Step Up
- Typical Input Voltage (V) N/A
- Typical Output Resistance (Ohm) N/A
- Typical Quiescent Current (uA) 50
- Typical Switch Current (A) 3.6
