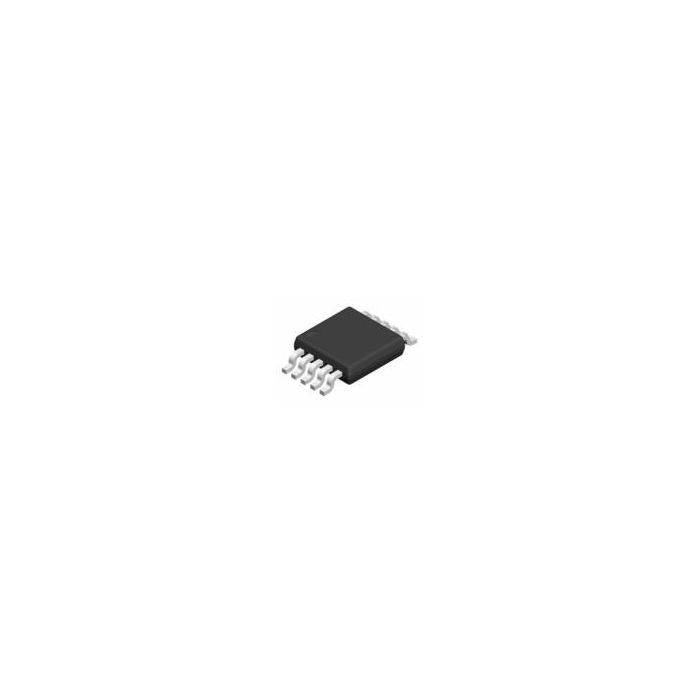

TPS54160ADGQ
| Do pobrania | Download |
|---|---|
| Main description | Conv DC-DC 3.5V to 60V Step Down Single-Out 0.8V to 58V 1.5A 10-Pin HVSSOP EP Tube |
Conv DC-DC 3.5V to 60V Step Down Single-Out 0.8V to 58V 1.5A 10-Pin HVSSOP EP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 25
- Inventory 7
- PCNs 42
- MaskPart TPS54160ADGQ%
Parametry
- Efficiency (%) N/A
- Isolation N/A
- Line Regulation N/A
- Load Regulation N/A
- Maximum Input Voltage (V) 60
- Maximum Output Current (A) 1.5
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 3.5
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 0.8 to 58
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 100 to 2500
- Switching Regulator Yes
- Technology N/A
- Type Step Down
- Typical Input Voltage (V) N/A
- Typical Quiescent Current (uA) 116
