TEA1095N

Więcej informacji
Do pobrania	Download

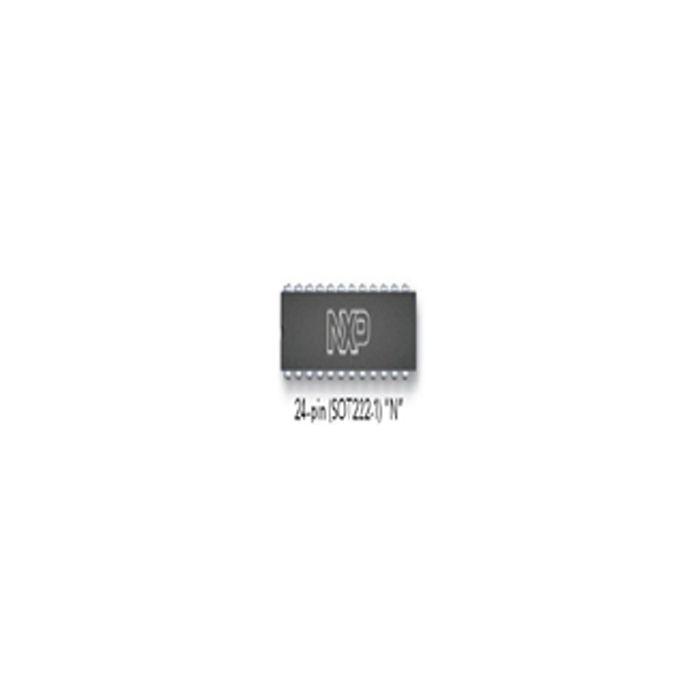

Main description	Speech Network Standard 15.5dB 24-Pin PDIP

Speech Network Standard 15.5dB 24-Pin PDIP

Informacje podstawowe

Application Answering Machines|Cordless Telephones|Fax Machines|Hands-Free Car Kits|Telephone Sets
Category Standard
Maximum Operating Supply Voltage (V) 12
Maximum Operating Temperature (°C) 75
Maximum Receiver Gain (dB) 6.5(Typ)
Maximum Transmitter Gain (dB) 15.5(Typ)
Minimum Operating Supply Voltage (V) 2.9
Minimum Operating Temperature (°C) -25
Supplier Temperature Grade N/A
Supply Current (mA) 3.8
Typical Operating Supply Voltage (V) 3.3|5|9
Typical Supply Current (mA) 2.7
