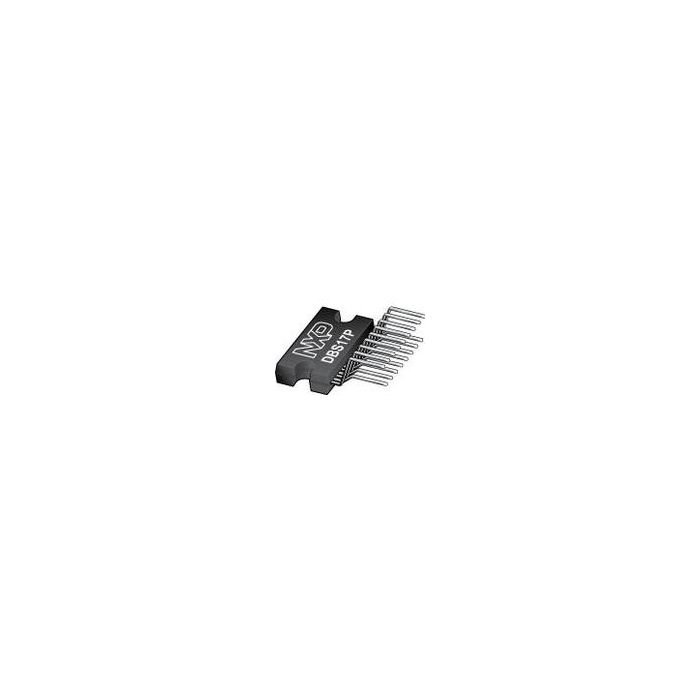

TDA1554Q/N2,112
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 2-CH Stereo/4-CH Stereo 22W Class-B 17-Pin DBS17P Bulk |
Audio Amp Speaker 2-CH Stereo/4-CH Stereo 22W Class-B 17-Pin DBS17P Bulk
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- PCNs 15
- MaskPart TDA1554QN2%
- IntroductionDate May 01, 1992
- AliasParts 935011160112
Parametry
- Amplifier Type Class-B
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 4
- Maximum Output Current (mA) 6000
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 60000
- Maximum Quiescent Current (mA) 160@14.4V
- Maximum Single Supply Voltage (V) 18
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 6
- Output Signal Type Differential|Single
- Output Type 2-Channel Stereo|4-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade N/A
- Total Harmonic Distortion Noise 0.1%@4Ohm@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 22x2@4Ohm|11x4@2Ohm
- Typical PSRR (dB) N/A
- Typical Quiescent Current (mA) 80@14.4V
- Typical Single Supply Voltage (V) 14.4
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 26
