STM32F103ZGH6JTR
| Do pobrania | Download |
|---|---|

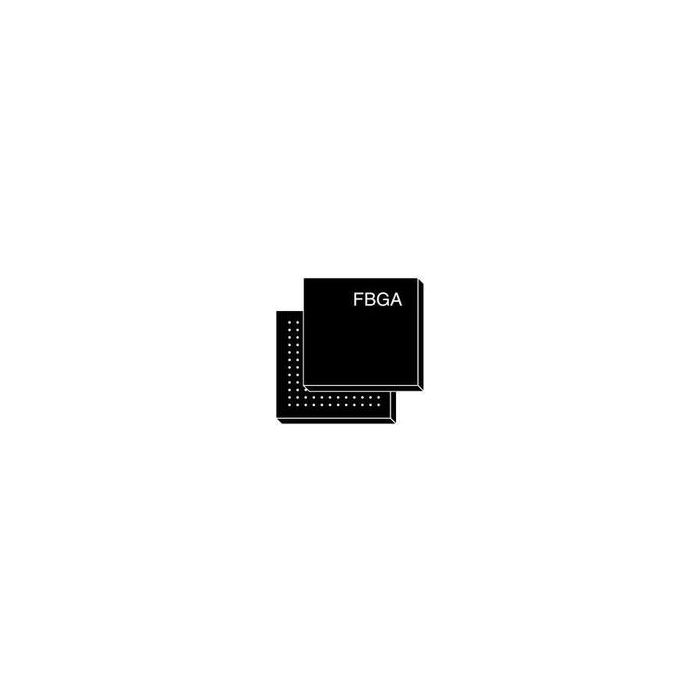

| Main description | MCU 32-bit ARM Cortex M3 RISC 1MB Flash 2.5V/3.3V 144-Pin LFBGA T/R |
MCU 32-bit ARM Cortex M3 RISC 1MB Flash 2.5V/3.3V 144-Pin LFBGA T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 78
- PCNs 11
- MaskPart STM32F103ZGH6J%
Parametry
- ADC Channels 21/21/21
- ADC Resolution (bit) 12/12/12
- Analog Comparators N/A
- CAN 1
- Core Architecture ARM
- DAC Channels 2/2
- DAC Resolution (bit) 12/12
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core ARM Cortex M3
- Display Driver N/A
- Ethernet 0
- Family Name STM32F
- I2C 2
- I2S 2
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 72
- Maximum Clock Rate (MHz) 72
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) N/A
- Minimum Storage Temperature (°C) N/A
- Number of ADCs Triple
- Number of DACs Dual
- Number of Programmable I/Os 112
- Number of Timers 14
- PWM 2
- Program Memory Size 1MB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 96KB
- SPI 3
- Special Features CAN Controller
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 0
- USART 5
- USB 1
- Watchdog 2
