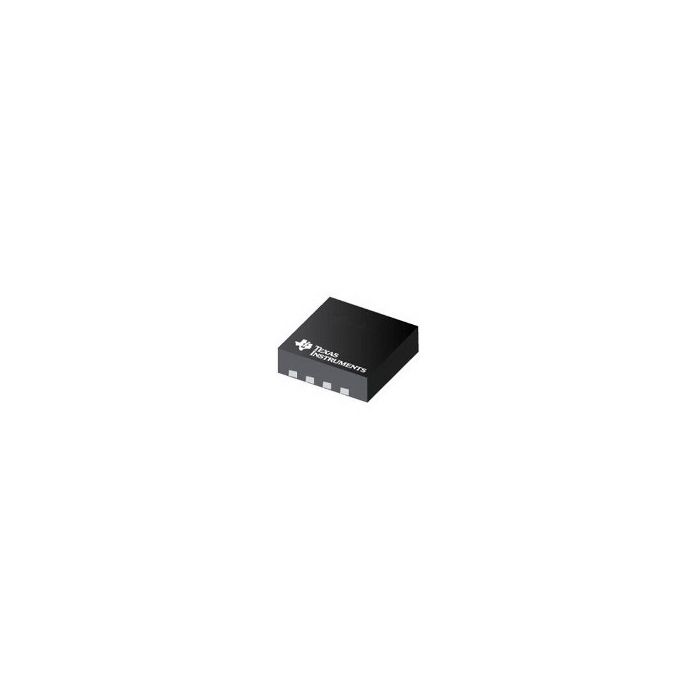

SN75LVCP600DRFT
Do pobrania | Download |
---|---|
Main description | LVDS Driver 3000Mbps 8-Pin WSON EP T/R |
LVDS Driver 3000Mbps 8-Pin WSON EP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 2
- PCNs 39
- MaskPart SN75LVCP600DRFT%
- IntroductionDate Nov 01, 2010
Parametry
- Differential Input High Threshold Voltage (V) N/A
- Differential Input Low Threshold Voltage (V) N/A
- Function Driver
- Input Signal Type CML
- Maximum Differential Output Voltage (V) N/A
- Maximum Input Current (uA) 20
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Number of Drivers 1
- Number of Elements per Chip N/A
- Number of Receivers N/A
- Supplier Temperature Grade Industrial
- Transmission Data Rate (Mbps) 3000
