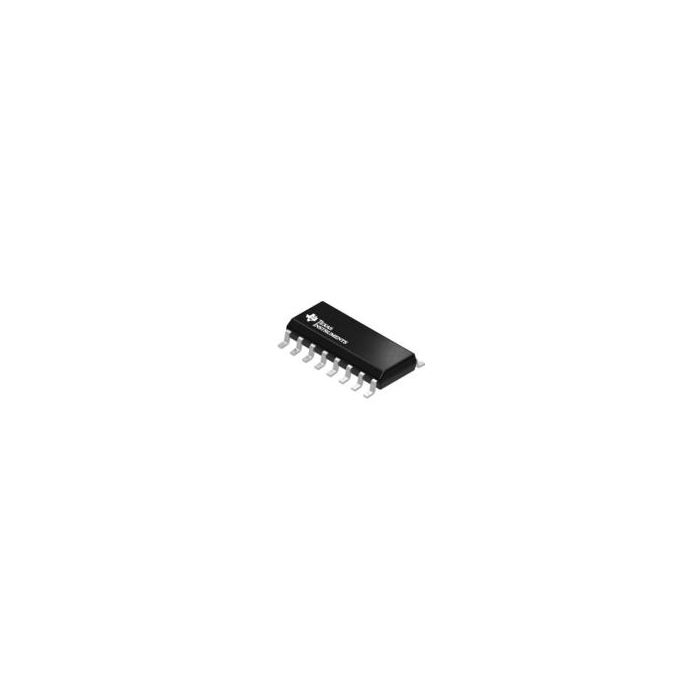

SN74LS396DR

Więcej informacji
Do pobrania Download
Main description Register Single-Element 4-CH Bipolar 16-Pin SOIC T/R
Register Single-Element 4-CH Bipolar 16-Pin SOIC T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 40
  • MaskPart SN74LS396D%
  • IntroductionDate Mar 01, 1977

Parametry

  • Absolute Propagation Delay Time (ns) 30
  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family LS
  • Logic Function Register
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -0.4
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 30@5V
  • Maximum Quiescent Current (mA) 24(Typ)
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Channels per Chip 4
  • Number of Element Inputs 4
  • Number of Element Outputs 8
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 0
  • Number of Output Enables per Element 1
  • Number of Selection Inputs per Element 0
  • Output Signal Type Single-Ended
  • Output Type N/A
  • Polarity Non-Inverting
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type N/A
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Typical Operating Supply Voltage (V) 5
