SN74LS367AN

Więcej informacji
Do pobrania Download

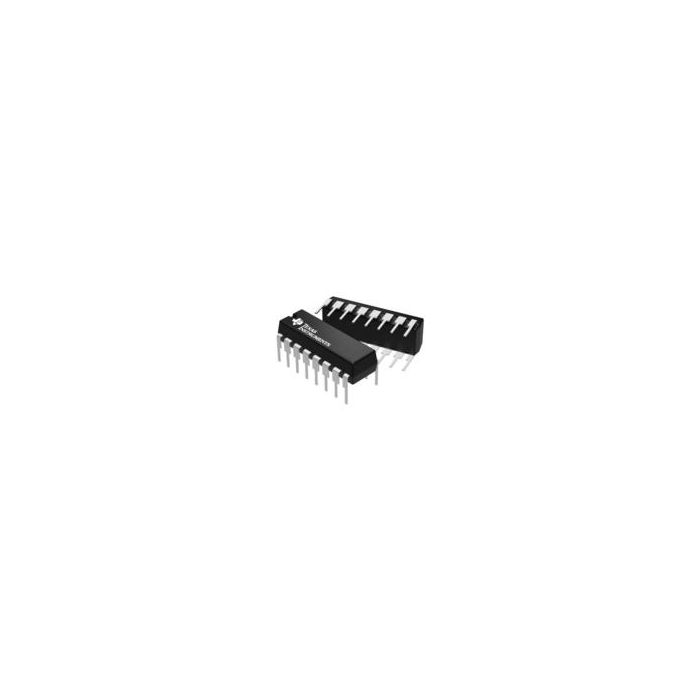

Main description Buffer/Line Driver 6-CH Non-Inverting 3-ST Bipolar 16-Pin PDIP Tube
Buffer/Line Driver 6-CH Non-Inverting 3-ST Bipolar 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 23
  • Inventory 8
  • PCNs 47
  • MaskPart SN74LS367AN%
  • IntroductionDate Jan 01, 2002

Parametry

  • Absolute Propagation Delay Time (ns) 40
  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family LS
  • Logic Function Buffer/Line Driver
  • Maximum High Level Output Current (mA) -2.6
  • Maximum Low Level Output Current (mA) 24
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 22@5V
  • Maximum Quiescent Current (uA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 24
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 6
  • Number of Elements per Chip 2
  • Number of Input Enables per Chip 0
  • Number of Inputs per Chip 6
  • Number of Output Enables per Chip 2 Low
  • Number of Outputs per Chip 6
  • Output Type 3-State
  • Polarity Non-Inverting
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 45
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) 14
