SN74LS322AN

Więcej informacji
Do pobrania Download

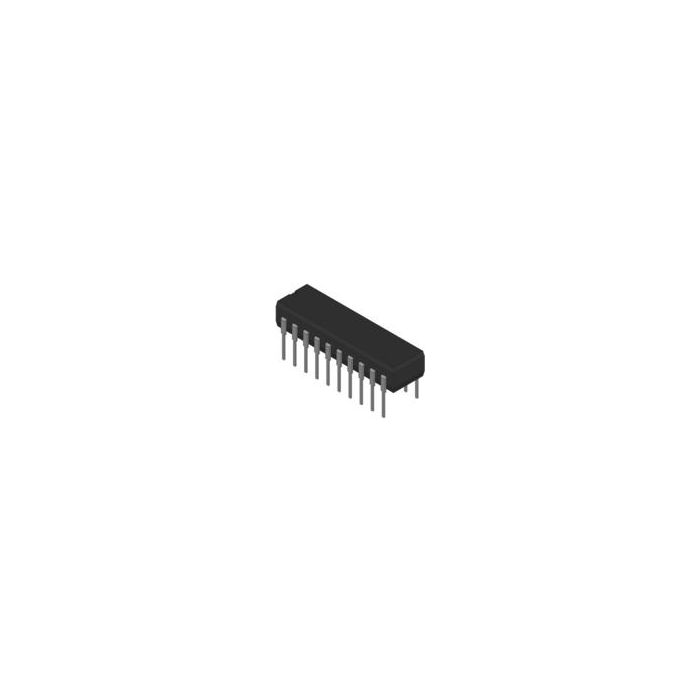

Main description IC SHIFT REGISTER SINGLE 8-Bit RIGHT 20PDIP
IC SHIFT REGISTER SINGLE 8-Bit RIGHT 20PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 18
  • MaskPart SN74LS322AN%
  • IntroductionDate Sep 27, 1995
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS322AN&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Direction Type Uni-Directional
  • Logic Family LS
  • Logic Function Shift Register
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 35
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 0
  • Number of Element Inputs 10
  • Number of Element Outputs 9
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 1
  • Number of Stages 8
  • Operation Mode Serial/Parallel to Serial/Parallel
  • Output Type 3-State
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology Bipolar
  • Reset Type N/A
  • Terminal Count Output No
  • Triggering Type Positive-Edge
