SN74LS181N3

Więcej informacji
Do pobrania Download

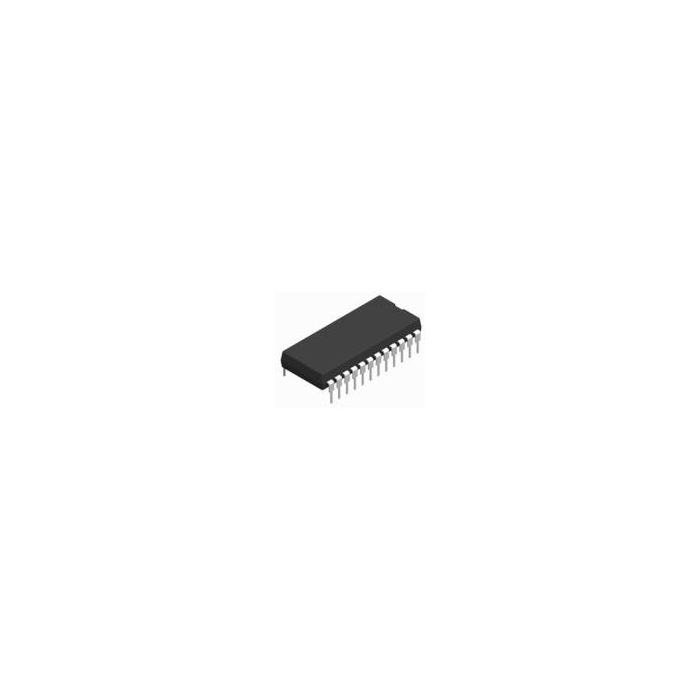

Main description Arithmetic Logic Unit 4-Bit 1-Element Bipolar 24-Pin PDIP Tube
Arithmetic Logic Unit 4-Bit 1-Element Bipolar 24-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 1*
  • PCNs 39
  • MaskPart SN74LS181N3%
  • IntroductionDate Dec 01, 1972

Parametry

  • Absolute Propagation Delay Time (ns) 62
  • Forced Root N/A
  • Logic Family LS
  • Logic Function Arithmetic Logic Unit
  • Maximum High Level Output Current (mA) -0.4
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 38@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Bits 4
  • Number of Elements per Chip 1
  • Process Technology Bipolar
  • Specification N/A
  • Supplier Temperature Grade Commercial
  • Supply Requirement Single
  • Typical Operating Supply Voltage (V) 5
