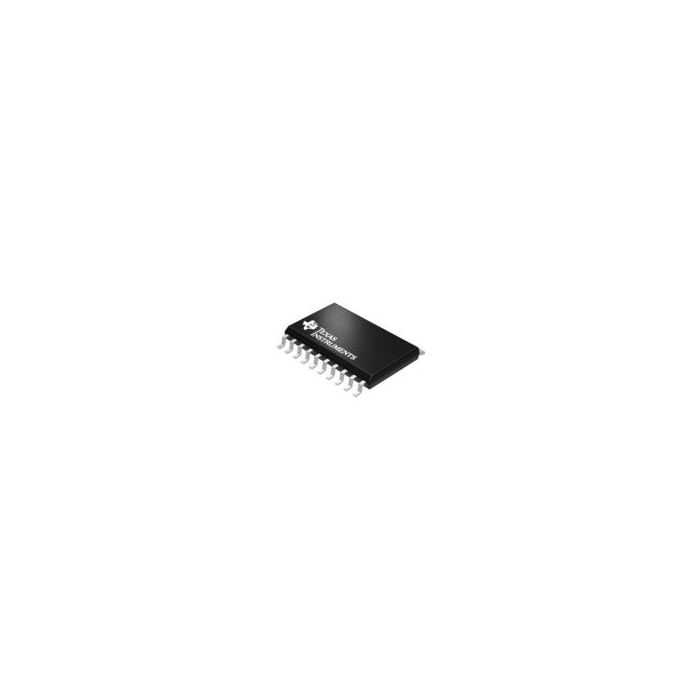

SN74HC574DWR
| Do pobrania | Download |
|---|---|
| Main description | Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC T/R |
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SOIC T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 72
- Inventory 7
- PCNs 56
- MaskPart SN74HC574DW%
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 330
- Bus Hold No
- Input Signal Type Single-Ended
- Logic Family HC
- Logic Function D-Type Bus Interface
- Maximum Frequency (15pF, 25°C) @ Vcc (MHz) N/A
- Maximum Frequency (50pF, 25°C) @ Vcc (MHz) 40(Typ)@6V
- Maximum High Level Output Current (mA) -7.8
- Maximum Low Level Output Current (mA) 7.8
- Maximum Propagation Delay (15pF, 25°C) @ Vcc (ns) N/A
- Maximum Propagation Delay (50pF, 25°C) @ Vcc (ns) 180@2V
- Maximum Propagation Delay Time @ Maximum CL (ns) 265@2V|53@4.5V|46@6V
- Maximum Quiescent Current (mA) 0.008
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 8
- Number of Element Inputs 8
- Number of Element Outputs 8
- Number of Elements per Chip 1
- Number of Output Enables per Element 1
- Output Signal Type Single-Ended
- Output Type 3-State
- Polarity Non-Inverting
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 150
- Set/Reset N/A
- Supplier Temperature Grade N/A
- Triggering Type Positive-Edge
