SN74HC00DTG4
Do pobrania | Download |
---|---|
Main description | NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R |

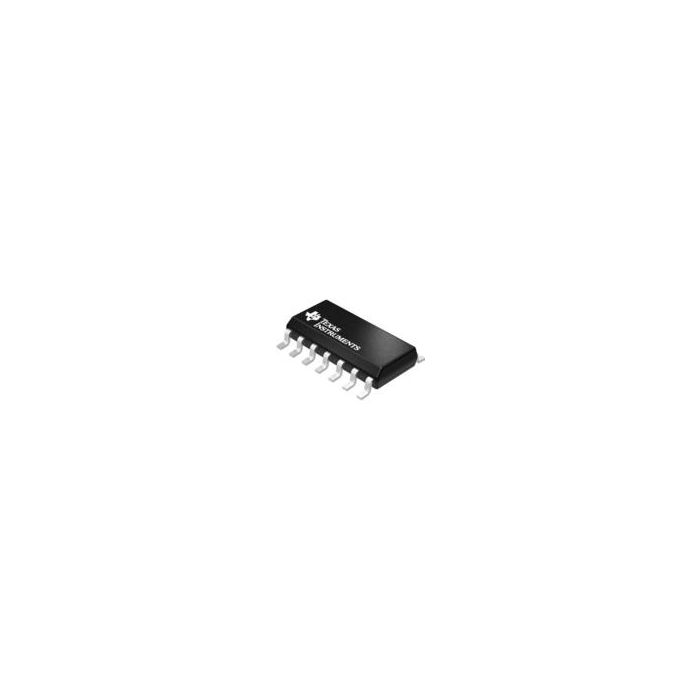

NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 101
- Inventory 1
- PCNs 39
- MaskPart SN74HC00D%G4
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 115
- Input Type N/A
- Logic Family HC
- Logic Function NAND
- Maximum High Level Output Current (mA) -5.2
- Maximum Low Level Output Current (mA) 5.2
- Maximum Propagation Delay Time @ Maximum CL (ns) 90@2V|18@4.5V|15@6V
- Maximum Quiescent Current (uA) 2
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Element Inputs 2-IN
- Number of Element Outputs 1
- Number of Elements per Chip 4
- Number of Output Enables per Element 0
- Number of Selection Inputs per Element 0
- Output Type Push-Pull
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
