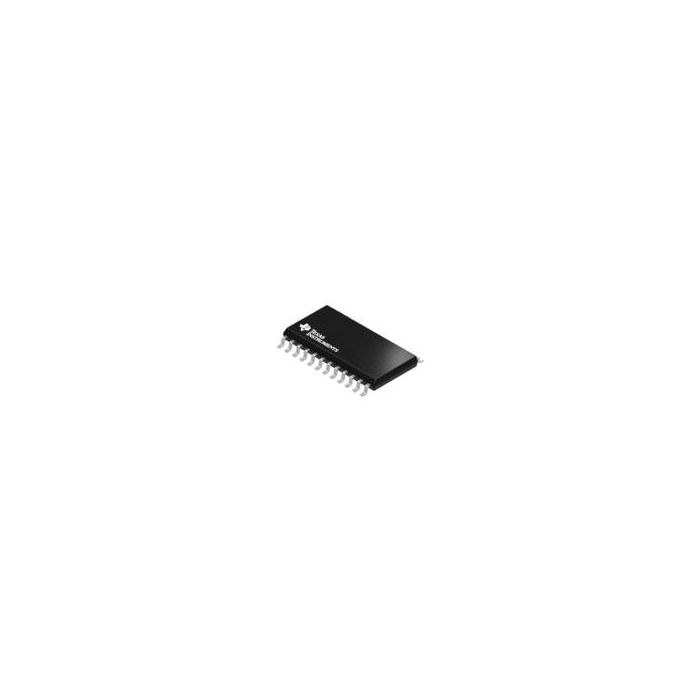

SN74CBTLV3383DWR
Do pobrania | Download |
---|---|
Main description | 5-CHBus Exchange Switch 1-Element 10-IN- 10-OUT 24-Pin SOIC T/R |
5-CHBus Exchange Switch 1-Element 10-IN- 10-OUT 24-Pin SOIC T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 19
- Inventory 4
- PCNs 43
- MaskPart SN74CBTLV3383DW%
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 6
- Configuration 5 x 2:2
- Logic Family CBTLV
- Maximum High Level Output Current (mA) -128
- Maximum Low Level Output Current (mA) 128
- Maximum On Resistance (Ohm) 27(Typ)
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 0.25@3.3V
- Maximum Quiescent Current (uA) 10
- Maximum Supply Current (mA) N/A
- Number of Elements per Chip 1
- Number of Inputs per Chip 10
- Number of Outputs per Chip 10
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade Commercial
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
