SN74ALVCHR16269AG
Do pobrania | Download |
---|---|
Main description | Registered Bus Exchanger 1-Element 24-OUT 12-IN 56-Pin TSSOP |

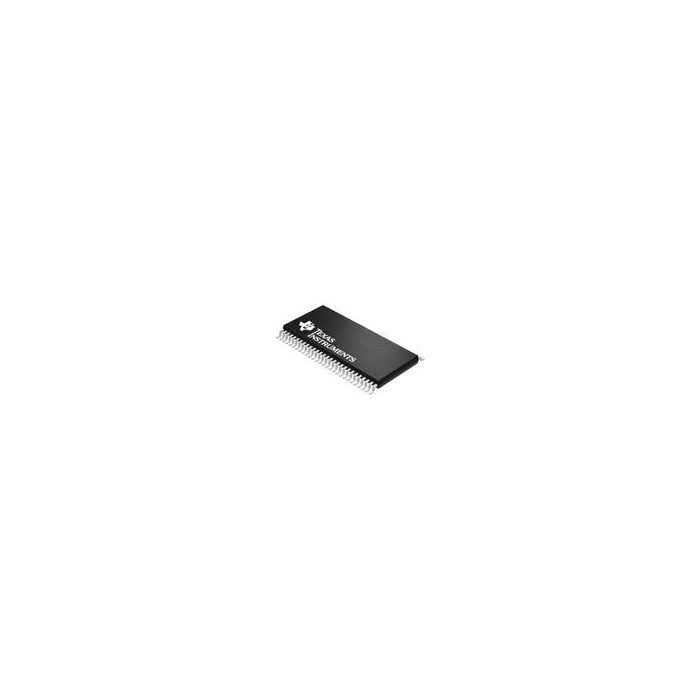

Registered Bus Exchanger 1-Element 24-OUT 12-IN 56-Pin TSSOP
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 24
- Inventory 1*
- PCNs 41
- MaskPart SN74ALVCHR16269AG%
- IntroductionDate Sep 01, 2005
Parametry
- Absolute Propagation Delay Time (ns) 8.1
- Configuration 12 x 2:1
- Function Registered Bus Exchanger
- Logic Family ALVC
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (GHz) 0.135(Min)@3.3V|0.115(Min)@2.7V|0.095(Min)@2.5V
- Maximum High Level Output Current (mA) -12
- Maximum Low Level Output Current (mA) 12
- Maximum On Resistance (Ohm) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 6.9@2.7V|5.8@3.3V
- Maximum Quiescent Current (uA) 40
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Number of Elements per Chip 1
- Number of Inputs per Chip 12
- Number of Outputs per Chip 24
- Output Type 3-State
- Polarity Non-Inverting
- Power Supply Type Single
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade Commercial
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
