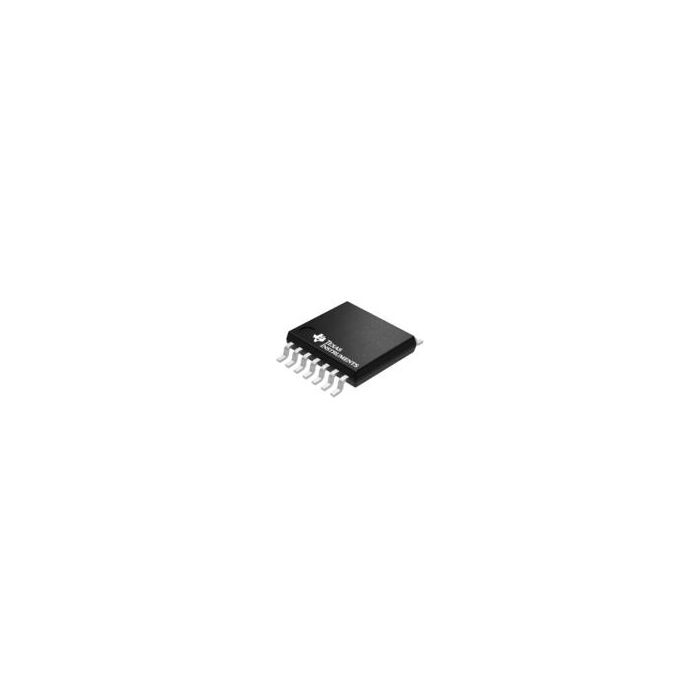

SN74ALVC125PWRG4
| Do pobrania | Download |
|---|---|
| Main description | Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R |
Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 33
- Inventory 6*
- PCNs 41
- MaskPart SN74ALVC125PW%G4
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 6.4
- Bus Hold No
- Input Signal Type Single-Ended
- Logic Family ALVC
- Logic Function Buffer/Line Driver
- Maximum High Level Output Current (mA) -24
- Maximum Low Level Output Current (mA) 24
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 3.1@2.7V|2.8@3.3V
- Maximum Quiescent Current (uA) 10
- Maximum Supply Current (mA) N/A
- Number of Channels per Chip 4
- Number of Elements per Chip 4
- Number of Input Enables per Chip 0
- Number of Inputs per Chip 4
- Number of Output Enables per Chip 4 Low
- Number of Outputs per Chip 4
- Output Type 3-State
- Polarity Non-Inverting
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade Commercial
- Tolerant I/Os (V) N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
