SN74ALS870NT
| Do pobrania | Download |
|---|---|

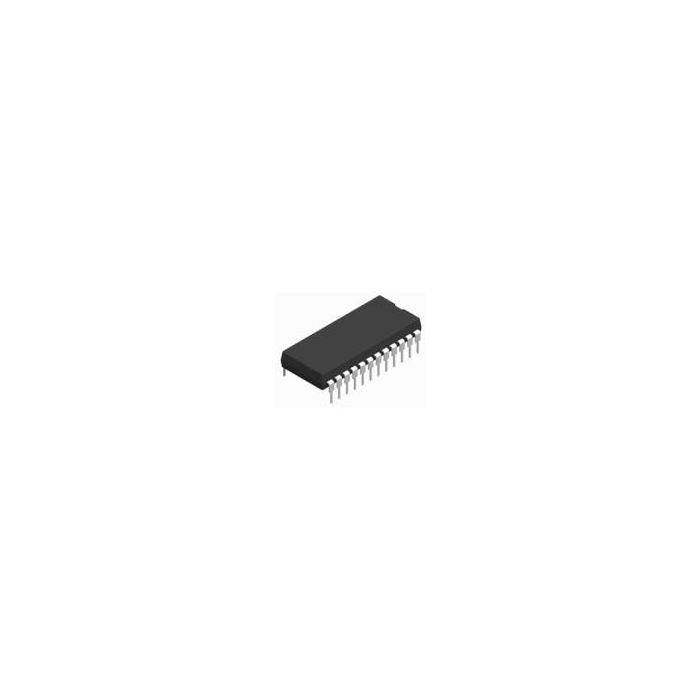

| Main description | Register File Dual-Element 8-CH Bipolar 24-Pin PDIP Tube |
Register File Dual-Element 8-CH Bipolar 24-Pin PDIP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 13
- Inventory 1
- PCNs 44
- MaskPart SN74ALS870NT%
- IntroductionDate Nov 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 26
- Bus Hold No
- Input Signal Type Single-Ended
- Logic Family ALS
- Logic Function Register File
- Maximum Frequency (MHz) N/A
- Maximum High Level Output Current (mA) -2.6
- Maximum Low Level Output Current (mA) 24
- Maximum Propagation Delay Time @ Maximum CL (ns) 26@4.5V to 5.5V
- Maximum Quiescent Current (mA) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 8
- Number of Element Inputs 4
- Number of Element Outputs 4
- Number of Elements per Chip 2
- Number of Input Enables per Element 1
- Number of Output Enables per Element 1
- Number of Selection Inputs per Element 4
- Output Signal Type Single-Ended
- Output Type 3-State
- Polarity Non-Inverting
- Process Technology Bipolar
- Propagation Delay Test Condition (pF) 50
- Reset Type N/A
- Supplier Temperature Grade Commercial
- Tolerant I/Os (V) N/A
- Triggering Type N/A
