S25FL512SAGMFI011
| Do pobrania | Download |
|---|---|

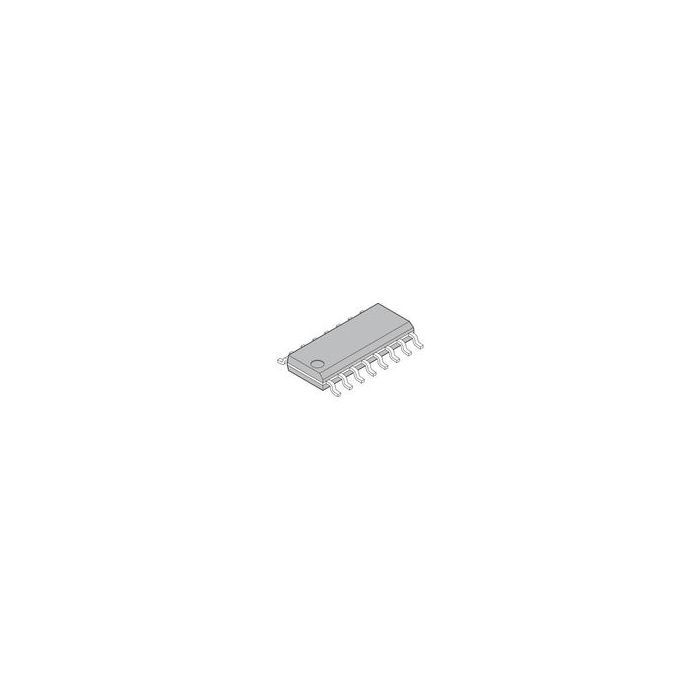

| Main description | NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 16-Pin SOIC W Tube |
NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 16-Pin SOIC W Tube
Informacje podstawowe
- ProducentCypress Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 35
- Inventory 7
- PCNs 31
- GIDEP-Alerts 1
- MaskPart S25FL512SAGMFI01%
- IntroductionDate Mar 02, 2012
- SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=S25FL512SAGMFI011
Parametry
- Address Bus Width (bit) 32
- Architecture Sectored
- Bank Size N/A
- Block Organization Symmetrical
- Boot Block Yes
- Cell Type NOR
- Command Compatible Yes
- Density (bit) 512M
- Density in Bits (bit) 536870912
- ECC Support Yes
- Erase Suspend/Resume Modes Support Yes
- Interface Type Serial (SPI, Dual SPI, Quad SPI)
- Location of Boot Block Bottom|Top
- MMC Version N/R
- Maximum Access Time (ns) 8
- Maximum Erase Time (s) 460/Bulk
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 0.75/Page
- Maximum Storage Temperature (°C) 150
- Minimum Endurance (Cycles) 100000
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 1/2/4
- Number of Words 512M/256M/128M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/R
- Page Size 512byte
- Process Technology 65nm
- Program Current (mA) 100
- Programmability Yes
- Programming Voltage (V) 2.7 to 3.6
- Sector Size 256Kbyte x 256
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface Yes
- Support of Page Mode No
- Timing Type Synchronous
