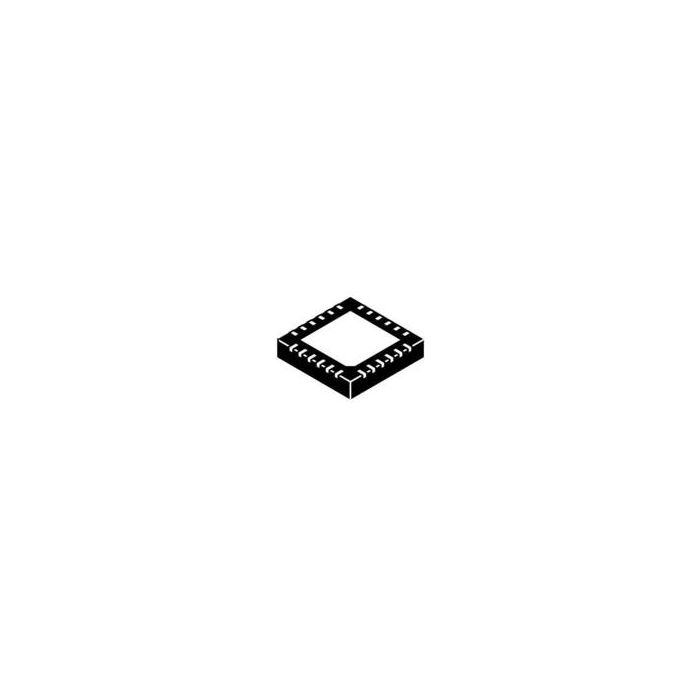

PCA9655EMTTXG

Więcej informacji
Do pobrania Download
Main description I2C/SMBus Interface 100kHz/400kHz/1000kHz 5.5V T/R
I2C/SMBus Interface 100kHz/400kHz/1000kHz 5.5V T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 5
  • PCNs 20
  • GIDEP-Alerts 1
  • MaskPart PCA9655EMT%XG
  • IntroductionDate Feb 15, 2011
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=PCA9655EMTTXG&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • I2C Bus Interface Mode Standard Mode|Fast Mode|Fast Mode Plus
  • Interface Speed (kHz) 100|400|1000
  • Interface Type I2C|SMBus
  • Interrupt Output Yes
  • Manual Reset Yes
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Quiescent Current (uA) 1500
  • Maximum Sink Current per Bit (mA) 42(Typ)
  • Maximum Source Current per Bit (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Number of Addresses 64
  • Number of I/Os 16
  • Output Type Open Drain
  • Supplier Temperature Grade N/A
