PCA9570DPJ
Do pobrania | Download |
---|---|
Main description | I2C/SMBus Interface 100kHz/400kHz 3.6V 8-Pin TSSOP T/R |

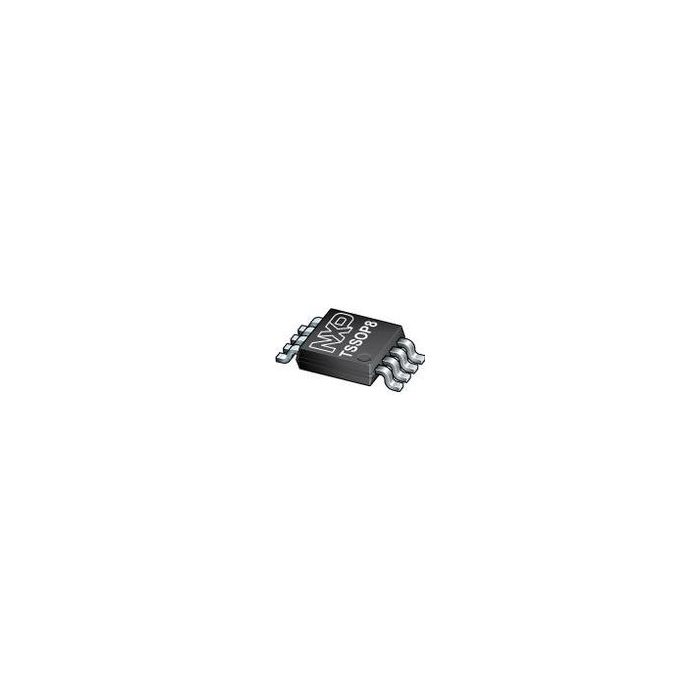

I2C/SMBus Interface 100kHz/400kHz 3.6V 8-Pin TSSOP T/R
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- PCNs 12
- MaskPart PCA9570DPJ%
Parametry
- I2C Bus Interface Mode Standard Mode|Fast Mode
- Interface Speed (kHz) 100|400
- Interface Type I2C|SMBus
- Internal I/O Pull Up Resistor N/A
- Interrupt Output No
- Manual Reset Yes
- Maximum Quiescent Current (uA) N/A
- Maximum Sink Current per Bit (mA) N/A
- Maximum Source Current per Bit (mA) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Addresses 1
- Number of I/Os 4
- Output Type N/A
- Supplier Temperature Grade N/A
- Tolerant I/Os (V) N/A
