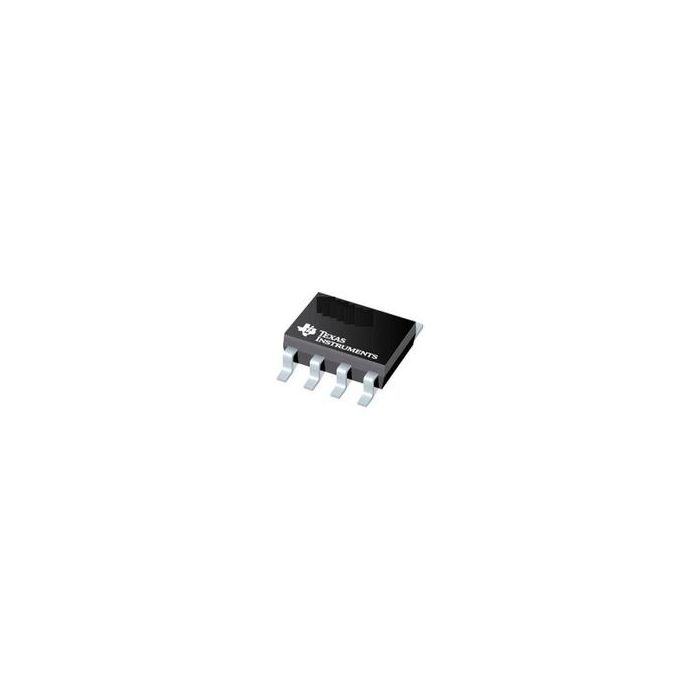

ADSL Driver Dual 8-Pin SOIC T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 6
- Inventory 2
- PCNs 53
- MaskPart OPA2674ID%
- IntroductionDate May 16, 2005
Parametry
- Amplifier Topology Current Feedback Amplifier
- JTAG Support No
- Maximum Dual Supply Voltage (V) ±6.3
- Maximum High Drive Current (mA) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) N/R
- Maximum Storage Temperature (°C) 125
- Maximum Supply Current (A) 19.2
- Minimum CMRR (dB) 55(Typ)
- Minimum Dual Supply Voltage (V) N/A
- Minimum Single Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -65
- Mode of Oscillation N/A
- Number of Drivers/Receivers 2
- Output Impedance (Ohm) N/A
- Output Type Differential
- Power Supply Type Dual
- Supplier Temperature Grade N/A
- Type Driver
- Typical 3dB Bandwidth (MHz) N/A
- Typical Dual Supply Voltage (V) ±6
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Single Supply Voltage (V) N/R
- Typical Slew Rate (V/us) 2000
- Typical Total Harmonic Distortion (dB) -74
