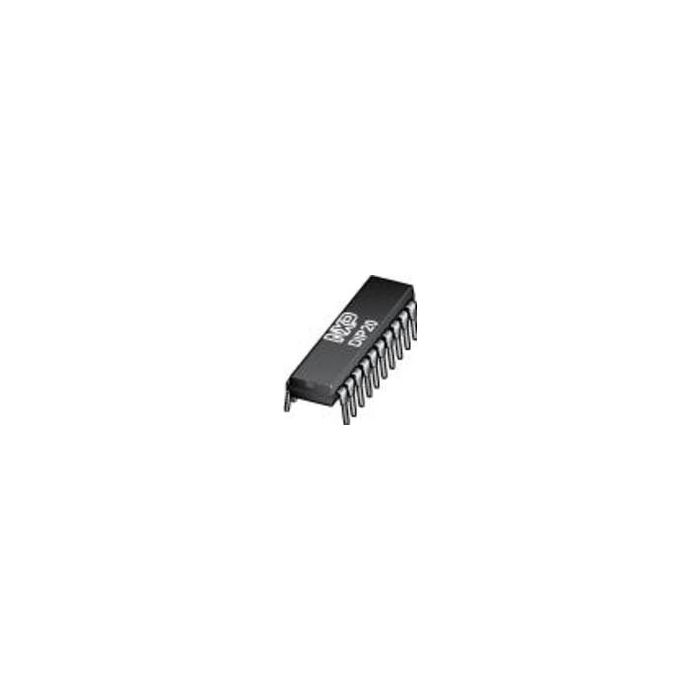

PLL Single-Element Up to 150MHz 20-Pin PDIP |
PLL Single-Element Up to 150MHz 20-Pin PDIP
Informacje podstawowe
- ProducentNXP Semiconductors
- Automotive No
Informacje dodatkowe
- PCNs 12
- MaskPart NE568AN%
- IntroductionDate Feb 01, 1996
Parametry
- Maximum Input Frequency (MHz) N/A
- Maximum Operating Supply Voltage (V) 5.5
- Maximum Operating Temperature (°C) 70
- Maximum Supply Current (mA) 70
- Minimum Input Frequency (MHz) N/A
- Minimum Operating Supply Voltage (V) 4.5
- Minimum Operating Temperature (°C) 0
- Number of Elements per Chip 1
- Operating Frequency Range (MHz) Up to 150
- Output Frequency Range (MHz) N/A
- Supplier Temperature Grade N/A
- Type PLL
- Typical Operating Supply Voltage (V) 5
