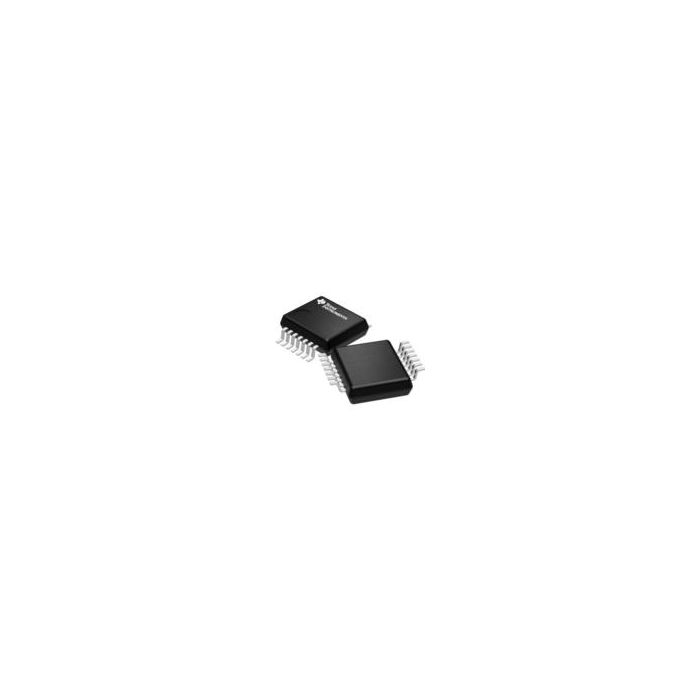

Standard Timer Dual 14-Pin SSOP
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 32
- Inventory 6*
- PCNs 39
- MaskPart NE556DB%E4
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) N/A
- Maximum High Level Output Current (mA) -200
- Maximum Low Level Output Current (mA) 200
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) N/A
- Maximum Quiescent Current (mA) 30
- Maximum Supply Current (mA) N/A
- Number of Internal Timers 2
- Output Logic Level TTL
- Process Technology N/A
- Supplier Temperature Grade N/A
- Type Standard
