NE529N,602
| Do pobrania | Download |
|---|---|
| Main description | Comparator Single ±10V/5.25V 14-Pin PDIP Tube |

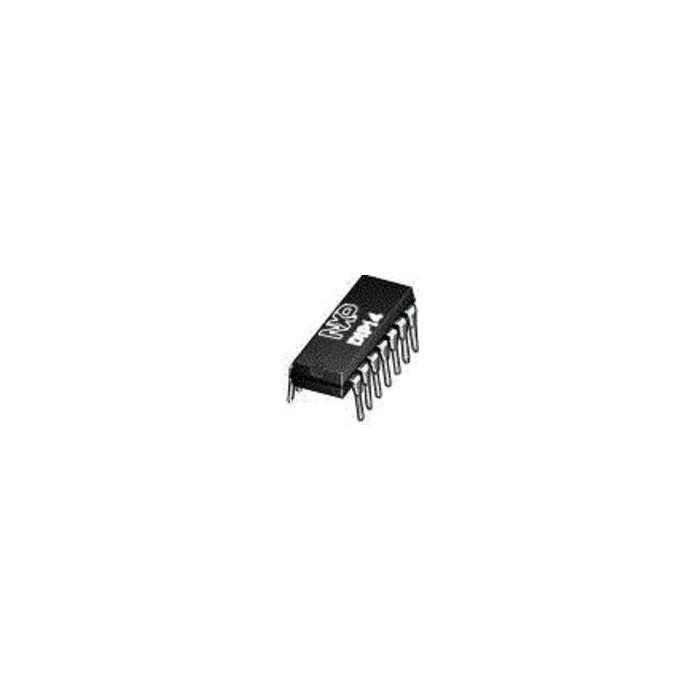

Comparator Single ±10V/5.25V 14-Pin PDIP Tube
Informacje podstawowe
- ProducentNXP Semiconductors
- EURoHSUnknown (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 1
- PCNs 14
- MaskPart NE529N%
- IntroductionDate Aug 31, 1994
Parametry
- Manufacturer Type Voltage Comparator
- Maximum Dual Supply Voltage (V) ±10|5.25
- Maximum Input Bias Current (uA) 20@5V
- Maximum Input Offset Voltage (mV) 6@5V
- Maximum Power Dissipation (mW) 1420
- Maximum Propagation Delay Time (ns) 22
- Maximum Single Supply Voltage (V) N/R
- Maximum Supply Current (mA) 20@5.25V/10@-10V/5@10V@0C to 70C
- Minimum Dual Supply Voltage (V) -6|4.75|5
- Minimum Single Supply Voltage (V) N/R
- Number of Channels per Chip 1
- Output Type Open Collector/Emitter
- Power Supply Type Triple
- Process Technology Bipolar
- Rail to Rail N/A
- Strobe Capability Yes
- Supplier Temperature Grade Commercial
- Typical CMRR (dB) N/A
- Typical Dual Supply Voltage (V) 5|9
- Typical Output Current (mA) N/A
- Typical PSRR (dB) N/A
- Typical Response Time (us) N/A
- Typical Response Time Range (us) N/A
- Typical Single Supply Voltage (V) N/R
- Typical Voltage Gain (dB) N/A
- Typical Voltage Gain Range (dB) N/A
