NC7SB3157P6X
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Single 2:1 6-Pin SC-70 T/R |

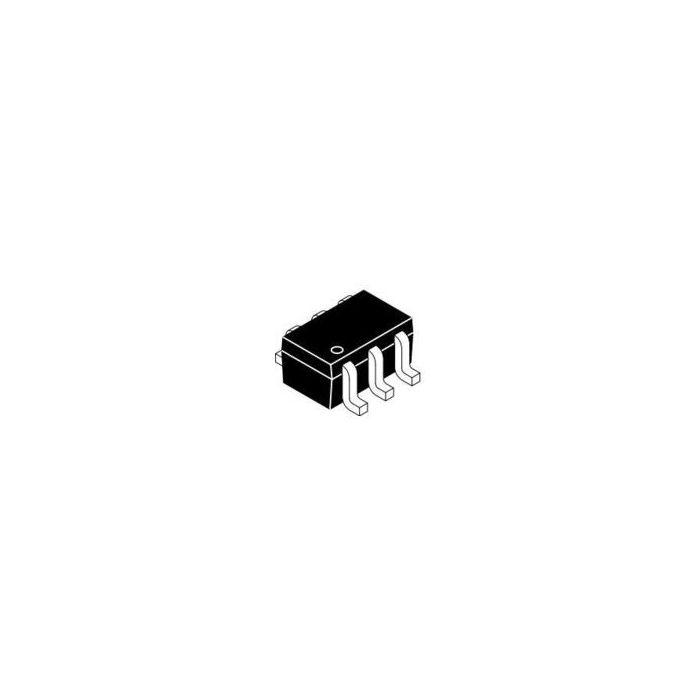

Analog Multiplexer Single 2:1 6-Pin SC-70 T/R
Informacje podstawowe
- ProducentON Semiconductor
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 16
- Inventory 9
- PCNs 45
- GIDEP-Alerts 2
- MaskPart NC7SB3157%
- IntroductionDate Jan 01, 2000
- SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=NC7SB3157P6X&tabbed=Y&clearFilters=Y&searchType=others
Parametry
- Chip Enable Signals No
- Configuration Single 2:1
- Function General
- Input Signal Type Single
- Logic Family TinyLogic UHS
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 250(Typ)@5.5V
- Maximum High Level Output Current (mA) 128
- Maximum Low Level Output Current (mA) N/A
- Maximum On Resistance (Ohm) 50@1.65V
- Maximum On Resistance Range (Ohm) 45 to 60
- Maximum Power Dissipation (mW) 180
- Maximum Propagation Delay Bus to Bus (ns) 3.5@1.95V|1.2@2.7V|0.8@3.6V|0.3@5.5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 12.5@1.95V
- Maximum Turn-On Time (ns) 23@1.95V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.65
- Multiplexer Architecture 2:1
- Number of Channels per Chip 1
- Number of Inputs per Chip 2
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade N/A
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
