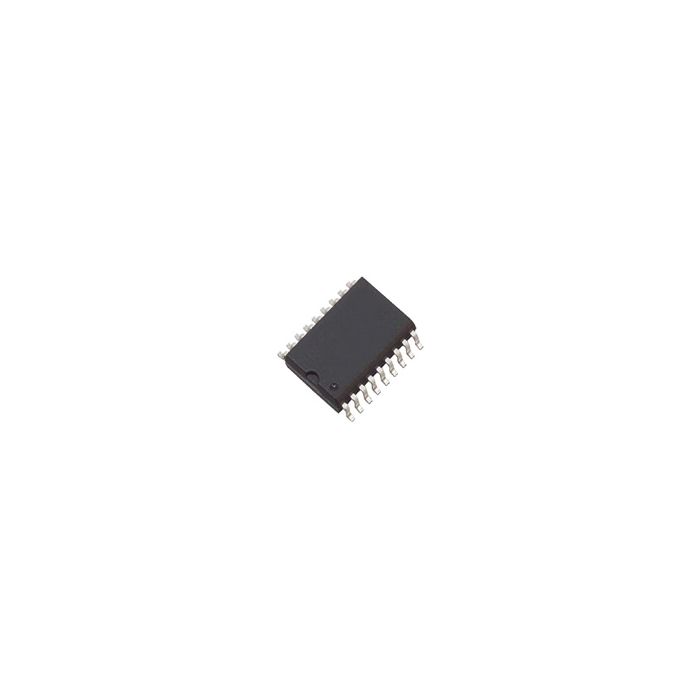

MIC5841BWM TR
| Do pobrania | Download |
|---|---|
| Main description | Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel 18-Pin SOIC W T/R |
Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel 18-Pin SOIC W T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 9
- Inventory 10*
- PCNs 53
- GIDEP-Alerts 1
- MaskPart MIC5841BWM%
- IntroductionDate Oct 01, 1998
Parametry
- Absolute Propagation Delay Time (ns) N/A
- Direction Type Uni-Directional
- Logic Family N/A
- Logic Function Shift Register/Latch/Driver
- Maximum Propagation Delay Time @ Maximum CL (ns) N/A
- Maximum Quiescent Current (mA) N/A
- Number of Count Input Enables 0
- Number of Element Inputs 1
- Number of Element Outputs 9
- Number of Elements per Chip 1
- Number of Selection Inputs per Element 0
- Number of Stages 8
- Operation Mode Serial to Serial/Parallel
- Output Type N/A
- Parallel Enable Input No
- Preset Type N/A
- Process Technology BiCMOS
- Propagation Delay Test Condition (pF) N/A
- Reset Type N/A
- Supplier Temperature Grade N/A
- Terminal Count Output No
- Tolerant I/Os (V) N/A
- Triggering Type Positive-Edge
- Type N/R
