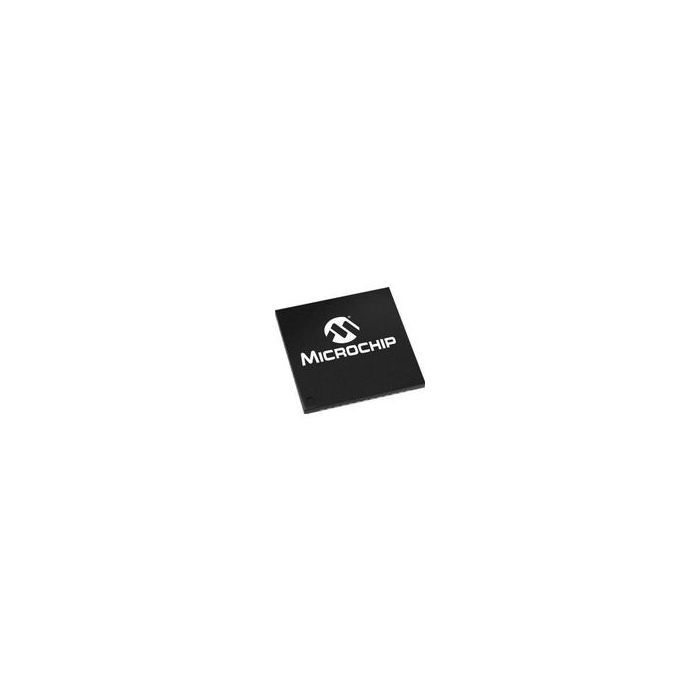

MIC45208-1YMP-T1
| Do pobrania | Download |
|---|---|
| Main description | Module DC-DC 1-OUT 0.8V to 5.5V 10A 52-Pin B2QFN T/R |
Module DC-DC 1-OUT 0.8V to 5.5V 10A 52-Pin B2QFN T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 6
- PCNs 54
- GIDEP-Alerts 3
- MaskPart MIC452081YMP%
- IntroductionDate Jan 01, 2000
Parametry
- Efficiency (%) 93(Min)
- Isolation N/A
- Line Regulation N/A
- Load Regulation 3.6%
- Maximum Input Voltage (V) 26
- Maximum Output Current (A) 10
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 4.5
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- On/Off Logic Positive
- Output Type Adjustable
- Output Voltage (V) 0.8 to 5.5
- Process Technology N/A
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 200 to 600
- Switching Regulator Yes
- Tradename N/A
- Type Step Down
- Typical Input Voltage (V) N/A
- Typical Standby Current (mA) N/A
