MIC26600YJL
Do pobrania | Download |
---|---|

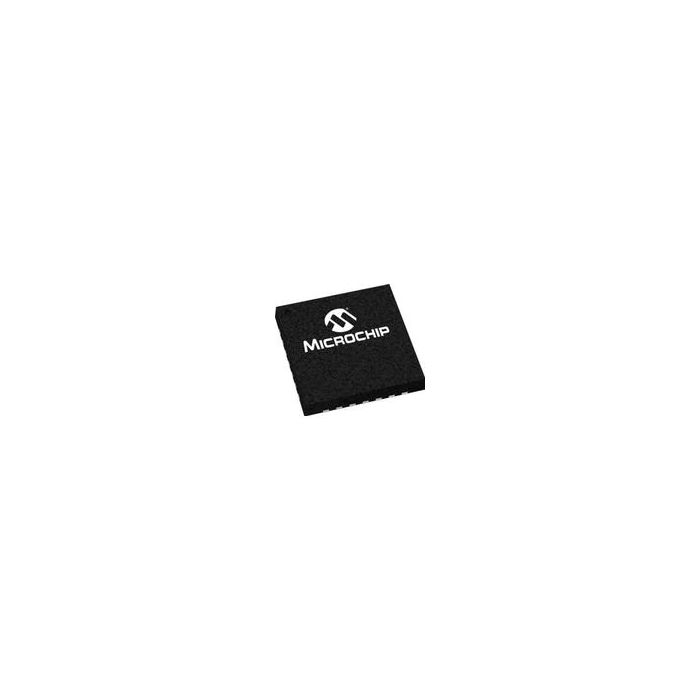

Main description | Conv DC-DC 4.5V to 26V Synchronous Step Down Single-Out 0.8V to 5.5V 7A 28-Pin QFN EP |
Conv DC-DC 4.5V to 26V Synchronous Step Down Single-Out 0.8V to 5.5V 7A 28-Pin QFN EP
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 47
- Inventory 3*
- PCNs 45
- MaskPart MIC26600YJL%
- IntroductionDate Jun 24, 2010
Parametry
- Efficiency (%) 95
- Isolation N/A
- Line Regulation 0.1%(Typ)
- Load Regulation 0.2%(Typ)
- Maximum Input Voltage (V) 26
- Maximum Output Current (A) 7
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 4.5
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Adjustable
- Output Voltage (V) 0.8 to 5.5
- Supplier Temperature Grade N/A
- Switching Frequency (kHz) 300(Typ)
- Switching Regulator Yes
- Technology N/A
- Type Synchronous Step Down
- Typical Input Voltage (V) N/A
- Typical Quiescent Current (uA) 1400
