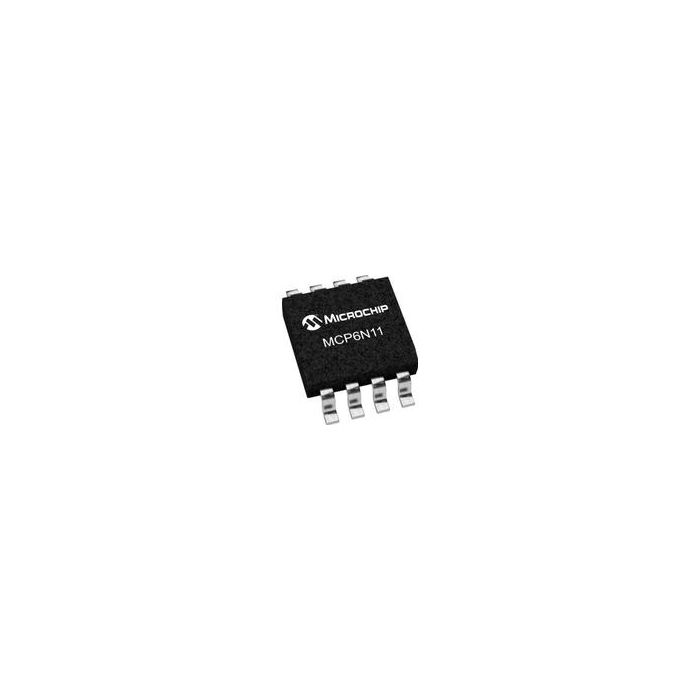

MCP6N11-005E/SN
| Do pobrania | Download |
|---|---|
| Main description | INST Amp Single R-R I/O 5.5V 8-Pin SOIC N Tube |
INST Amp Single R-R I/O 5.5V 8-Pin SOIC N Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 93
- Inventory 3
- PCNs 62
- GIDEP-Alerts 9
- MaskPart MCP6N11005ESN%
- IntroductionDate Oct 11, 2011
Parametry
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.00001(Typ)@5.5V
- Maximum Input Offset Voltage (mV) 0.85@5.5V
- Maximum Input Resistance (MOhm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 1.1@5.5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 5 to 7
- Maximum Voltage Gain (dB) 13.98(Min)
- Maximum Voltage Gain Range (dB) <35
- Minimum CMRR (dB) 75
- Minimum CMRR Range (dB) 75 to 85
- Minimum DC Continuous Isolation Voltage (V) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 75
- Minimum Single Supply Voltage (V) 1.8
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 1
- Power Supply Type Single
- Rail to Rail Rail to Rail Input/Output
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 2.5
- Typical Output Current (mA) 30(Max)
- Typical Single Supply Voltage (V) 3.3|5
