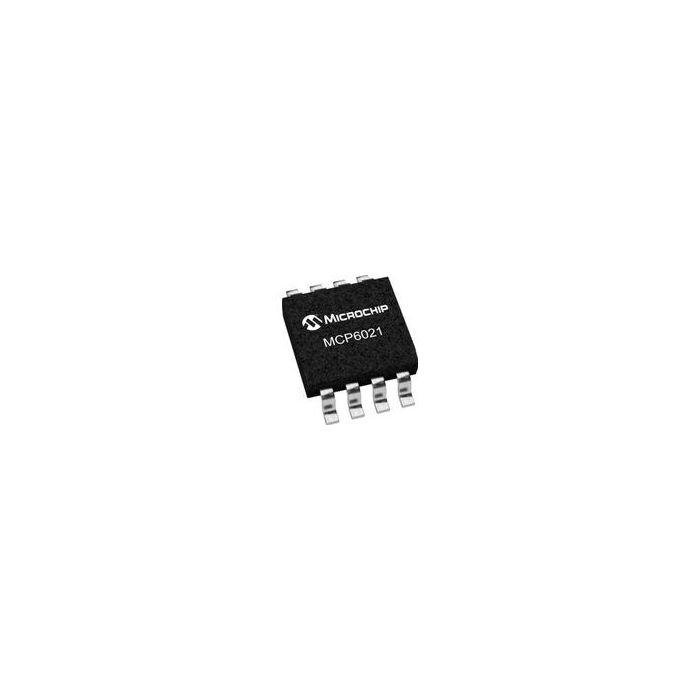

MCP6021-I/SN

Więcej informacji
Do pobrania Download
Main description Op Amp Single GP R-R I/O 5.5V Automotive 8-Pin SOIC N Tube
Op Amp Single GP R-R I/O 5.5V Automotive 8-Pin SOIC N Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 1477
  • Inventory 9
  • PCNs 66
  • GIDEP-Alerts 10
  • MaskPart MCP6021%ISN
  • IntroductionDate Oct 22, 2001

Parametry

  • Manufacturer Type General Purpose Amplifier
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) 0.015@5.5V@85C
  • Maximum Input Offset Current (uA) 0.000001(Typ)@5.5V
  • Maximum Input Offset Voltage (mV) 0.5@5.5V
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 1.35@5.5V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Maximum Supply Voltage Range (V) 5.5 to 6
  • Minimum CMRR (dB) 70
  • Minimum CMRR Range (dB) 70 to 71
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum PSRR (dB) 74
  • Minimum Single Supply Voltage (V) 2.5
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 1
  • Output Type CMOS
  • Power Supply Type Single
  • Process Technology CMOS
  • Rail to Rail Rail to Rail Input/Output
  • Shut Down Support No
  • Supplier Temperature Grade Industrial
  • Type General Purpose Amplifier
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) 10
  • Typical Input Bias Current (uA) 0.000001@5.5V
  • Typical Input Noise Voltage Density (nV/rtHz) 8.7@5.5V
  • Typical Inverting Input Current Noise Density (pA/rtHz) N/A
  • Typical Noninverting Input Current Noise Density (pA/rtHz) 0.003@5.5V
  • Typical Output Current (mA) 30(Max)
  • Typical Settling Time (ns) 250
  • Typical Single Supply Voltage (V) 3|5
  • Typical Slew Rate (V/us) 7@5.5V
  • Typical Voltage Gain (dB) 110
