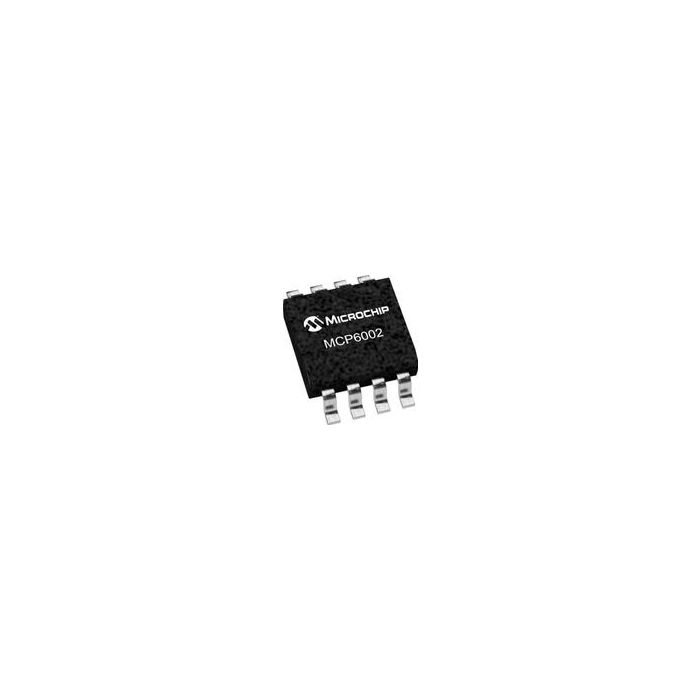

MCP6002T-E/SN
| Do pobrania | Download |
|---|---|
| Main description | Op Amp Dual GP R-R I/O 6V Automotive 8-Pin SOIC N T/R |
Op Amp Dual GP R-R I/O 6V Automotive 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 122
- Inventory 5
- PCNs 70
- GIDEP-Alerts 15
- FoundINBOMs 1
- MaskPart MCP6002%ESN
- IntroductionDate Jun 27, 2002
Parametry
- Manufacturer Type Low Power Amplifier
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Current (uA) 0.000001(Typ)@5.5V
- Maximum Input Offset Voltage (mV) 4.5@5.5V
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.34@5.5V
- Maximum Single Supply Voltage (V) 6
- Maximum Supply Current (mA) N/A
- Maximum Supply Voltage Range (V) 6 to 9
- Minimum CMRR (dB) 60
- Minimum CMRR Range (dB) 60 to 65
- Minimum Dual Supply Voltage (V) N/R
- Minimum PSRR (dB) 86(Typ)
- Minimum Single Supply Voltage (V) 1.8
- Number of Channels per Chip 2
- Output Type CMOS
- Power Supply Type Single
- Process Technology CMOS
- Rail to Rail Rail to Rail Input/Output
- Shut Down Support No
- Type General Purpose Amplifier
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) 1
- Typical Input Bias Current (uA) 0.000001@5.5V
- Typical Input Noise Voltage Density (nV/rtHz) 28@5.5V
- Typical Inverting Input Current Noise Density (pA/rtHz) N/A
- Typical Noninverting Input Current Noise Density (pA/rtHz) 0.0006@5.5V
- Typical Output Current (mA) 30(Max)
- Typical Settling Time (ns) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Slew Rate (V/us) 0.6@5.5V
- Typical Voltage Gain (dB) 112
