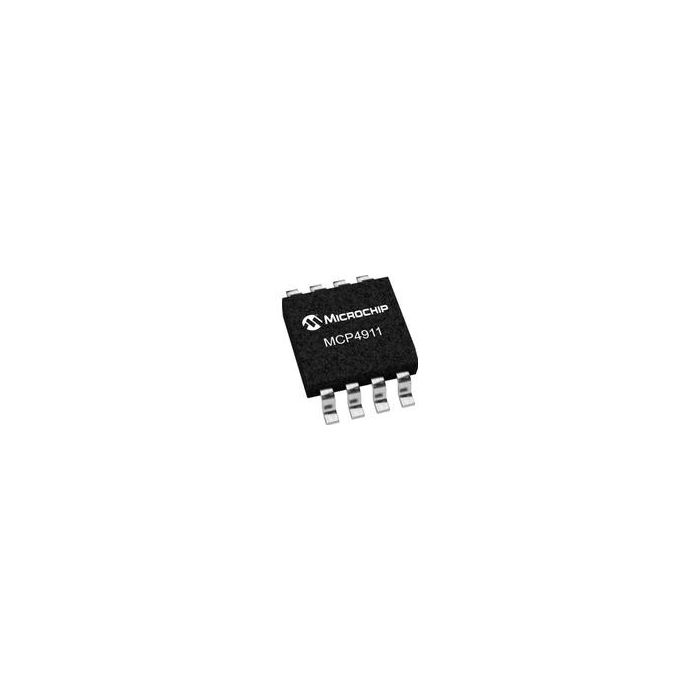

MCP4911T-E/SN
| Do pobrania | Download |
|---|---|
| Main description | DAC 1-CH Resistor-String 10-bit Automotive 8-Pin SOIC N T/R |
DAC 1-CH Resistor-String 10-bit Automotive 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 278
- Inventory 1
- PCNs 66
- GIDEP-Alerts 12
- MaskPart MCP4911ESN%
- IntroductionDate Apr 09, 2010
Parametry
- Architecture Resistor-String
- Conversion Rate N/A
- Converter Type General Purpose
- Digital Interface Type Serial (3-Wire, SPI, Microwire)
- Digital Supply Support No
- Full Scale Error 1%FSR
- Integral Nonlinearity Error ±3.5LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) N/A
- Maximum Settling Time (us) 4.5(Typ)
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Minimum Storage Temperature (°C) -65
- Number of DAC Channels 1
- Number of Outputs per Chip 1
- Output Polarity Unipolar
- Output Type Voltage
- Power Supply Type Single
- Resolution 10bit
- Signal to Noise Ratio N/A
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 5
- Voltage Reference External
