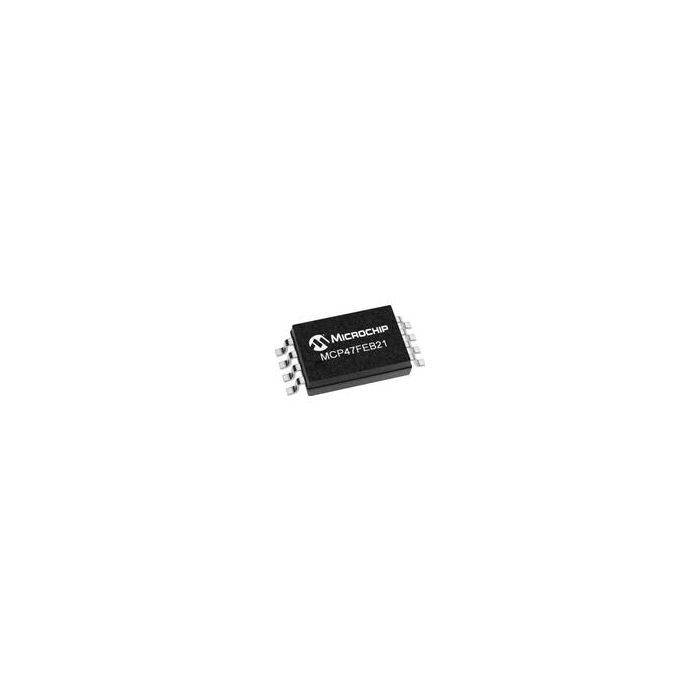

MCP47FEB21A0-E/ST
| Do pobrania | Download |
|---|---|
| Main description | DAC 1-CH Resistor-String 12-bit 8-Pin TSSOP Tube |
DAC 1-CH Resistor-String 12-bit 8-Pin TSSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 255
- Inventory 5
- PCNs 49
- GIDEP-Alerts 3
- MaskPart MCP47FEB21A0EST%
- IntroductionDate Feb 19, 2015
Parametry
- Architecture Resistor-String
- Conversion Rate N/A
- Converter Type General Purpose
- Digital Interface Type Serial (2-Wire)
- Digital Supply Support No
- Full Scale Error 70LSB
- Integral Nonlinearity Error ±6LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) 700
- Maximum Settling Time (us) 6(Typ)
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.8
- Minimum Storage Temperature (°C) -65
- Number of DAC Channels 1
- Number of Outputs per Chip 1
- Output Polarity Unipolar
- Output Type Voltage
- Power Supply Type Single
- Resolution 12bit
- Signal to Noise Ratio N/A
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 2.5|3.3|5
- Voltage Reference Internal|External|Supply
