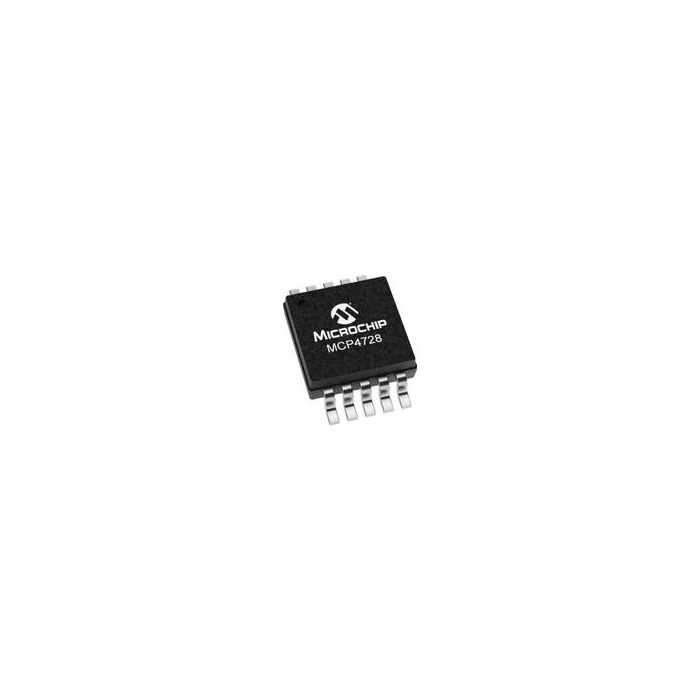

MCP4728A1-E/UN
| Do pobrania | Download |
|---|---|
| Main description | DAC 4-CH Resistor-String 12-bit Automotive 10-Pin MSOP Tube |
DAC 4-CH Resistor-String 12-bit Automotive 10-Pin MSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 264
- Inventory 7
- PCNs 46
- MaskPart MCP4728A1EUN%
- IntroductionDate Jun 11, 2009
Parametry
- Architecture Resistor-String
- Conversion Rate N/A
- Converter Type General Purpose
- Digital Interface Type Serial (2-Wire, I2C)
- Digital Supply Support No
- Full Scale Error ±3%FSR
- Integral Nonlinearity Error ±13LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) N/A
- Maximum Settling Time (us) 6(Typ)
- Maximum Single Supply Voltage (V) 5.5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Number of DAC Channels 4
- Number of Outputs per Chip 4
- Output Polarity Unipolar
- Output Type Voltage
- Power Supply Type Single
- Resolution 12bit
- Signal to Noise Ratio N/A
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3.3|5
- Voltage Reference Internal|Supply
