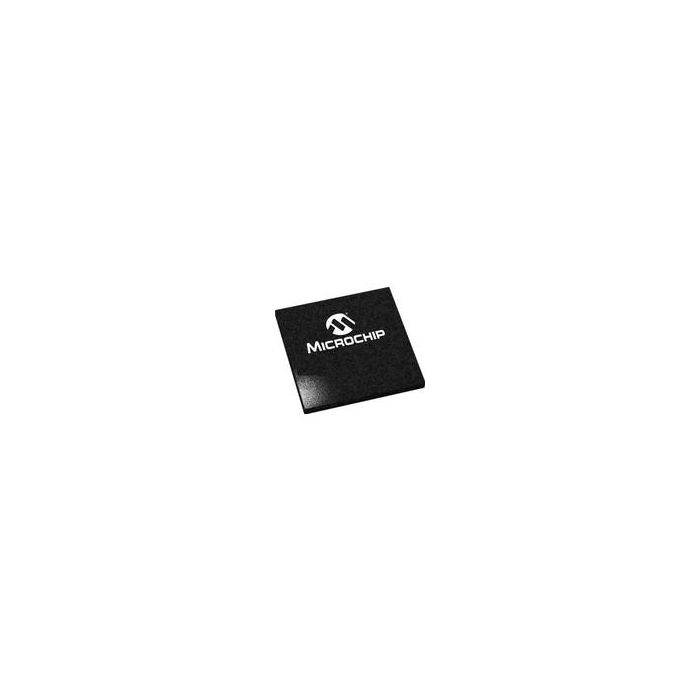

MCP37D11-200I/TL
| Do pobrania | Download |
|---|---|
| Main description | 8-Channel Single ADC Pipelined 200Msps 12-bit Parallel CMOS/Serial LVDS 124-Pin VTLA EP Tube |
8-Channel Single ADC Pipelined 200Msps 12-bit Parallel CMOS/Serial LVDS 124-Pin VTLA EP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- PCNs 47
- GIDEP-Alerts 1
- MaskPart MCP37D11200ITL%
- IntroductionDate Oct 27, 2014
Parametry
- Architecture Pipelined
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±0.03LSB(Typ)
- Digital Interface Type Parallel CMOS|Serial LVDS
- Digital Supply Support Yes
- Full Scale Error ±0.5%FSR(Typ)
- Input Signal Type Differential
- Input Type Voltage
- Input Voltage 1.4875Vp-p/2.975Vp-p
- Integral Nonlinearity Error ±0.125LSB(Typ)
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 1.26/1.89
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.14/1.71
- No Missing Codes (bit) 12
- Number of ADCs 1
- Number of Input Channels 8
- Parallel Interface Parallel CMOS|Parallel LVDS
- Polarity of Input Voltage N/A
- Resolution 12bit
- Sample and Hold Yes
- Sampling Rate 200Msps
- Serial Interface Serial LVDS
- Signal to Noise Ratio 71.33dBFS(Typ)
- Single-Ended Input No
- Supplier Temperature Grade Industrial
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 490
- Typical Single Supply Voltage (V) 1.2/1.8
- Voltage Reference Internal|External
- Voltage Supply Source Analog and Digital
