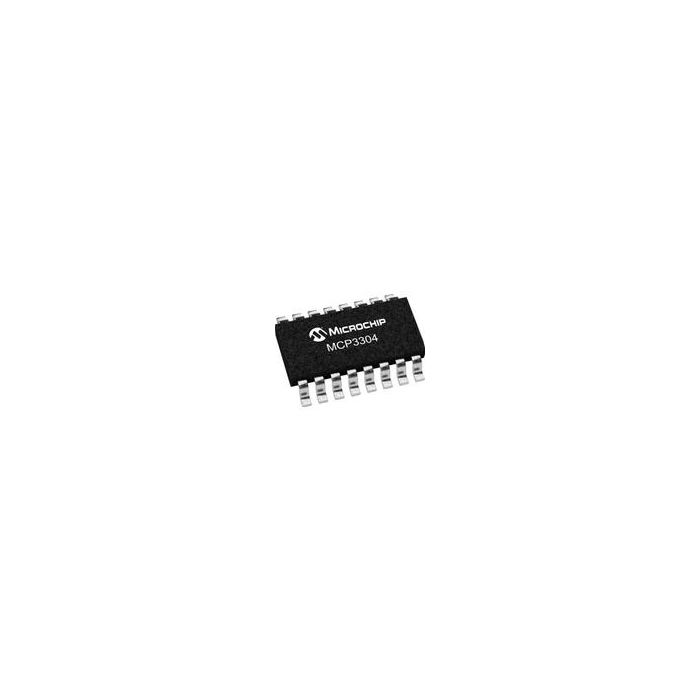

MCP3304-BI/SL
| Do pobrania | Download |
|---|---|
| Main description | 8-Channel Single ADC SAR 100ksps 12-bit+Sign Serial Automotive 16-Pin SOIC N Tube |
8-Channel Single ADC SAR 100ksps 12-bit+Sign Serial Automotive 16-Pin SOIC N Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 518
- Inventory 8
- PCNs 52
- GIDEP-Alerts 3
- MaskPart MCP3304%BISL
- IntroductionDate Jun 26, 2002
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1LSB
- Digital Interface Type Serial (SPI)
- Digital Supply Support No
- Full Scale Error -3/2LSB
- Input Signal Type Single-Ended|Differential
- Input Type Voltage
- Input Voltage ±5V
- Integral Nonlinearity Error ±1LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Positive Supply Voltage (V) 5.5
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 5.5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- No Missing Codes (bit) N/A
- Number of ADCs 1
- Number of Input Channels 8|4
- Polarity of Input Voltage Bipolar
- Resolution 12bit+Sign
- Sample and Hold Yes
- Sampling Rate 100ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade Industrial
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 5
- Voltage Reference External
- Voltage Supply Source Single
