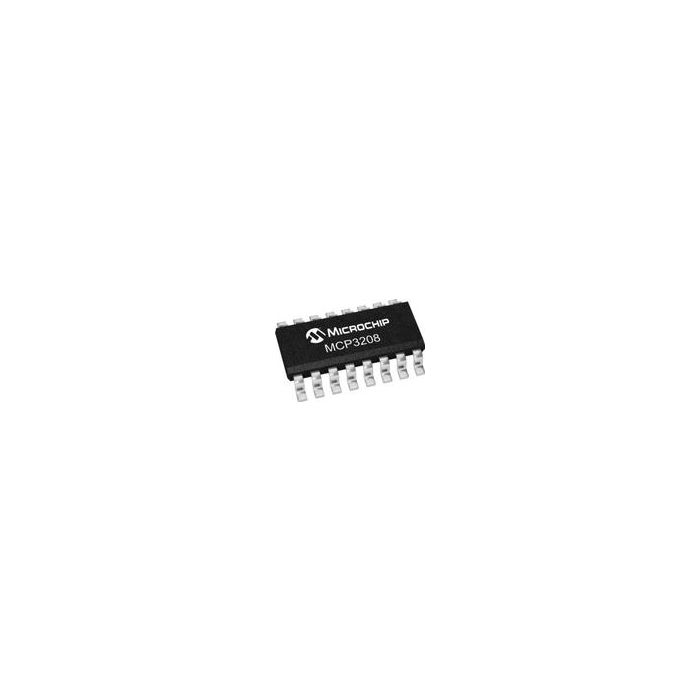

MCP3208-BI/SL
| Do pobrania | Download |
|---|---|
| Main description | Octal Channel Single ADC SAR 100ksps 12-bit Serial Automotive 16-Pin SOIC N Tube |
Octal Channel Single ADC SAR 100ksps 12-bit Serial Automotive 16-Pin SOIC N Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 3
- Inventory 13
- PCNs 50
- GIDEP-Alerts 3
- MaskPart MCP3208%BISL
- IntroductionDate Aug 19, 1999
Parametry
- Architecture SAR
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity ±1LSB
- Digital Interface Type Serial (4-Wire, SPI)
- Digital Supply Support No
- Full Scale Error ±5LSB
- Input Signal Type Single-Ended|Pseudo-Differential
- Input Type Voltage
- Input Voltage 5V
- Integral Nonlinearity Error ±1LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Negative Supply Voltage (V) N/A
- Maximum Positive Supply Voltage (V) 5.5
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 5.5
- Minimum Dual Supply Voltage (V) N/R
- Minimum Negative Supply Voltage (V) N/A
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- No Missing Codes (bit) N/A
- Number of ADCs 1
- Number of Input Channels 8|4
- Polarity of Input Voltage Unipolar
- Resolution 12bit
- Sample and Hold Yes
- Sampling Rate 100ksps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade Industrial
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 5
- Voltage Reference External
- Voltage Supply Source Single
