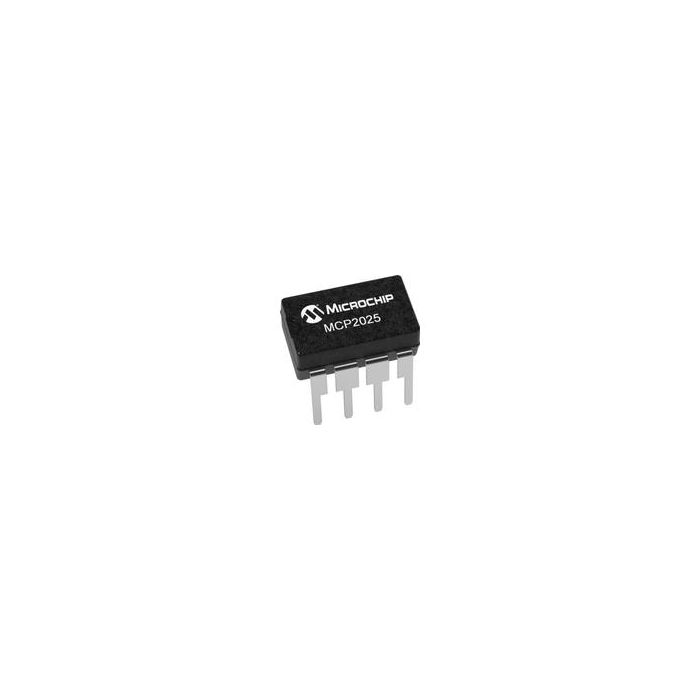

MCP2025-500E/P
| Do pobrania | Download |
|---|---|
| Main description | LIN Transceiver with Integrated Vreg 5V 20kBd Automotive 8-Pin PDIP Tube |
LIN Transceiver with Integrated Vreg 5V 20kBd Automotive 8-Pin PDIP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 14
- Inventory 7
- PCNs 48
- GIDEP-Alerts 2
- MaskPart MCP2025500EP%
- IntroductionDate Jun 28, 2012
Parametry
- Built-in Options Voltage Regulator
- External Wake-up Pin Yes
- I/O Voltages for Controller (V) N/A
- LIN Bus Wake-up Capable Yes
- LIN Specifications LIN 1.3|LIN 2.0|LIN 2.1
- Maximum Data Rate (kBd) 20
- Maximum Dual Supply Voltage (V) N/R
- Maximum LIN Bus Voltage (V) 30
- Maximum Single Supply Voltage (V) 18
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 1
- Minimum Dual Supply Voltage (V) N/R
- Minimum LIN Bus Voltage (V) -18
- Minimum Single Supply Voltage (V) 6
- Minimum Storage Temperature (°C) -65
- Power Supply Type Single
- Regulator Voltage (V) 5
- Supplier Temperature Grade Extended
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 9|12|15
