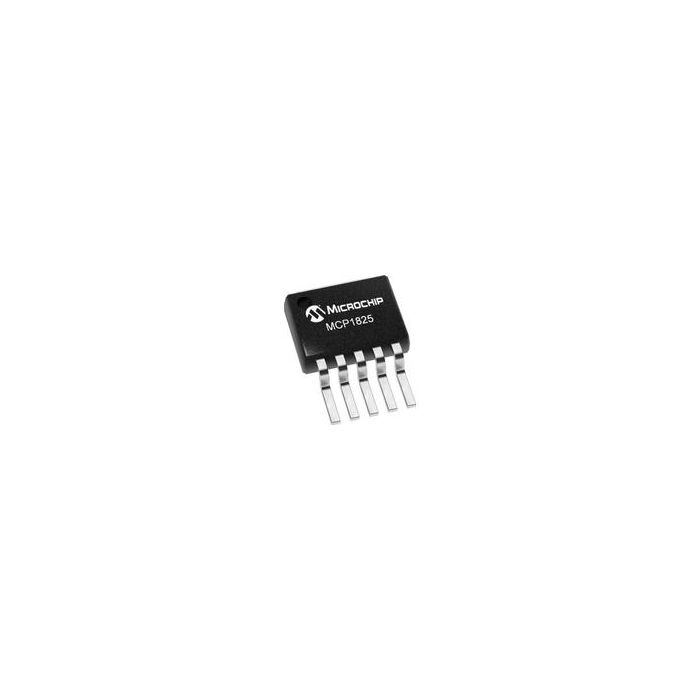

MCP1825TADJ02E/ET

Więcej informacji
Do pobrania	Download
Main description	LDO Regulator Pos 0.8V to 5V 0.5A Automotive 6-Pin(5+Tab) DDPAK T/R

LDO Regulator Pos 0.8V to 5V 0.5A Automotive 6-Pin(5+Tab) DDPAK T/R

Informacje podstawowe

Accuracy (%) ±0.5(Typ)
Junction to Ambient 31.2°C/W(Typ)
Junction to Case 3°C/W(Typ)
Line Regulation 0.05%/V(Typ)
Load Regulation 0.5%(Typ)
Maximum Dropout Voltage @ Current (V) 0.35@500mA
Maximum Input Voltage (V) 6
Maximum Operating Temperature (°C) 125
Maximum Output Current (A) 0.5(Min)
Maximum Power Dissipation (mW) N/A
Maximum Quiescent Current (mA) 0.22
Maximum Storage Temperature (°C) 150
Minimum Input Voltage (V) 2.1
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Noise Spectral Density (uV/rtHz) 2@1kHz
Number of Outputs 1
Output Capacitor Type Ceramic
Output Type Adjustable
Output Voltage (V) 0.8 to 5
Output Voltage Range (V) <1.8|1.8 to 10
Pass Element Type PMOS
Polarity Positive
Reference Voltage (V) 0.41(Typ)
Special Features Current Limit|Short Circuit Protection|Thermal Shutdown Protection
Supplier Temperature Grade Extended
Type LDO
Typical Bias Voltage (VDC) N/A
Typical Dropout Voltage @ Current (V) 0.21@500mA
Typical Ground Current @ Full Load (mA) N/A
Typical Output Capacitance (uF) 1
Typical Output Noise Voltage (uVrms) N/A
Typical PSRR (dB) 60
Typical Power Dissipation (mW) N/A
Typical Quiescent Current (mA) 0.12
