MCP1651R-E/MS
Do pobrania | Download |
---|---|

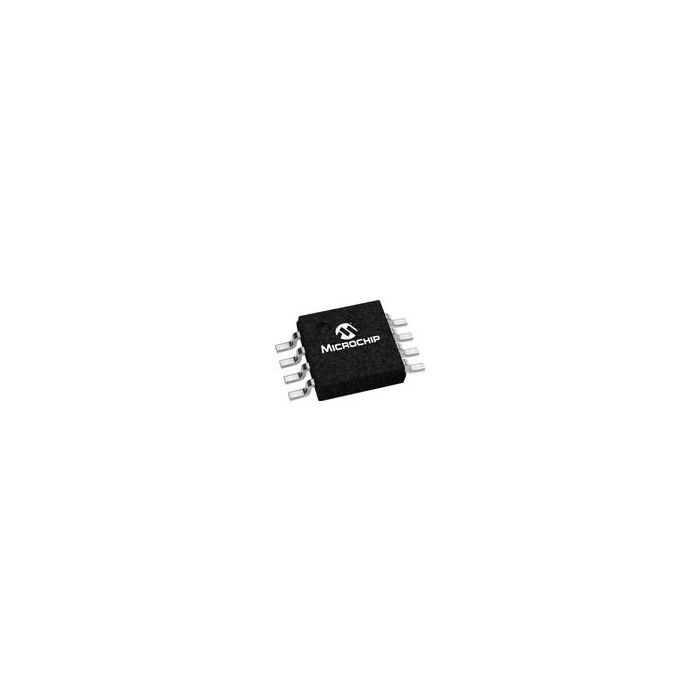

Main description | DC/DC Cntrlr Single-OUT Step Up 850kHz Automotive 8-Pin MSOP Tube |
DC/DC Cntrlr Single-OUT Step Up 850kHz Automotive 8-Pin MSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 18
- Inventory 7
- PCNs 60
- GIDEP-Alerts 12
- MaskPart MCP1651R%EMS
- IntroductionDate Mar 17, 2004
Parametry
- Control Method N/A
- Maximum Input Voltage (V) 5.5
- Maximum Output Current (A) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 125
- Maximum Supply Current (mA) N/A
- Maximum Switching Frequency (kHz) 850
- Minimum Input Voltage (V) 2.7
- Minimum Output Current (A) N/A
- Minimum Storage Temperature (°C) -40
- Minimum Switching Frequency (kHz) 650
- Number of Outputs 1
- Output Voltage (V) 3.3 to 100
- Programmability No
- Supplier Temperature Grade N/A
- Synchronous Clock No
- Synchronous Rectifier No
- Topology Step Up
- Typical Gate Driver Pull Down Resistance (Ohm) N/A
- Typical Gate Driver Pull Up Resistance (Ohm) N/A
- Typical Input Voltage (V) N/A
- Typical Output Current (A) N/A
- Typical Quiescent Current (mA) 0.12
- Typical Switching Frequency (kHz) 750
