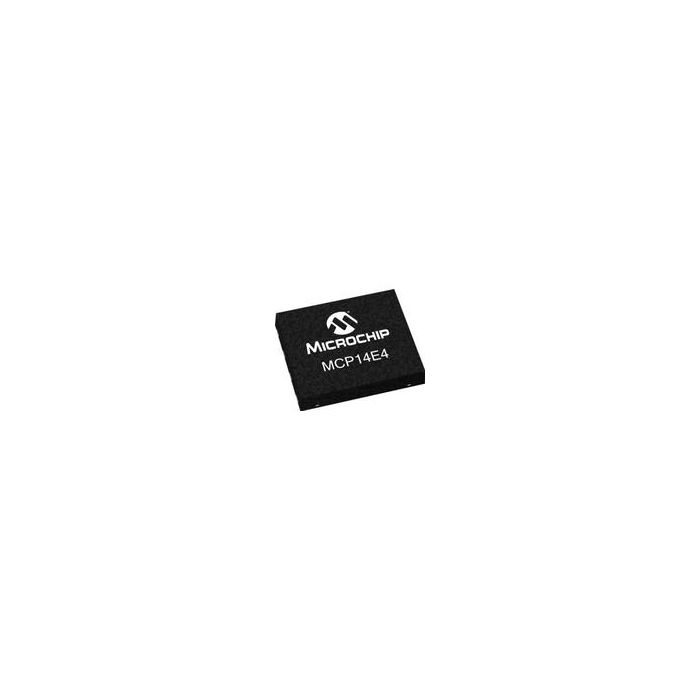

MCP14E4-E/MF
| Do pobrania | Download |
|---|---|
| Main description | Driver 4A 2-OUT Low Side Non-Inv Automotive 8-Pin DFN-S EP Tube |
Driver 4A 2-OUT Low Side Non-Inv Automotive 8-Pin DFN-S EP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 35
- Inventory 3
- PCNs 51
- MaskPart MCP14E4%EMF
- IntroductionDate Sep 27, 2007
Parametry
- Absolute Propagation Delay Time (ns) 60(Typ)
- Bridge Type N/A
- Driver Configuration Non-Inverting
- Driver Type Low Side
- High and Low Sides Dependency N/R
- Input Logic Compatibility CMOS|TTL
- Maximum Fall Time (ns) 30
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) 60(Typ)
- Maximum Rise Time (ns) 30
- Maximum Supply Current (mA) 2
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) 2.5
- Peak Output Current (A) 4(Typ)
- Reference Voltage (V) N/A
- Special Features N/A
- Supplier Temperature Grade Extended
- Type IGBT|MOSFET
- Typical Input High Threshold Voltage (V) 2.4(Min)
- Typical Input Low Threshold Voltage (V) 0.8(Max)
