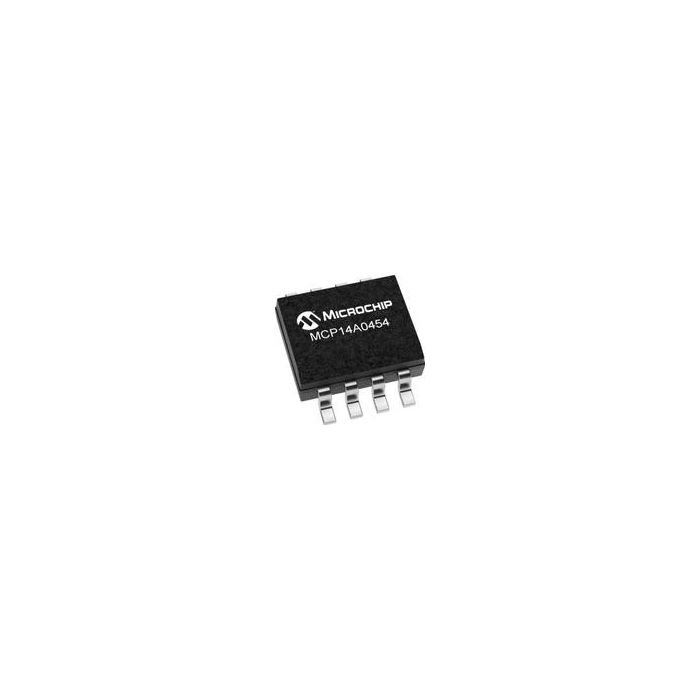

MCP14A0454T-E/SN
Do pobrania | Download |
---|---|
Main description | Driver 4.5A 2-OUT Non-Inv 8-Pin SOIC N T/R |
Driver 4.5A 2-OUT Non-Inv 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 5
- PCNs 45
- MaskPart MCP14A0454TESN%
Parametry
- Absolute Propagation Delay Time (ns) 26
- Bridge Type N/A
- Driver Configuration Non-Inverting
- Driver Type N/A
- High and Low Sides Dependency N/A
- Input Logic Compatibility N/A
- Latch-Up Proof Yes
- Maximum Fall Time (ns) 17
- Maximum Power Dissipation (mW) 1000
- Maximum Propagation Delay Time (ns) 26
- Maximum Rise Time (ns) 17
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.9
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Minimum Storage Temperature (°C) -65
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) 1.3|1.7
- Peak Output Current (A) 4.5(Typ)
- Reference Voltage (V) N/A
- Special Features N/A
- Supplier Temperature Grade Extended
- Type MOSFET
- Typical Input High Threshold Voltage (V) 1.6
- Typical Input Low Threshold Voltage (V) 1.3
