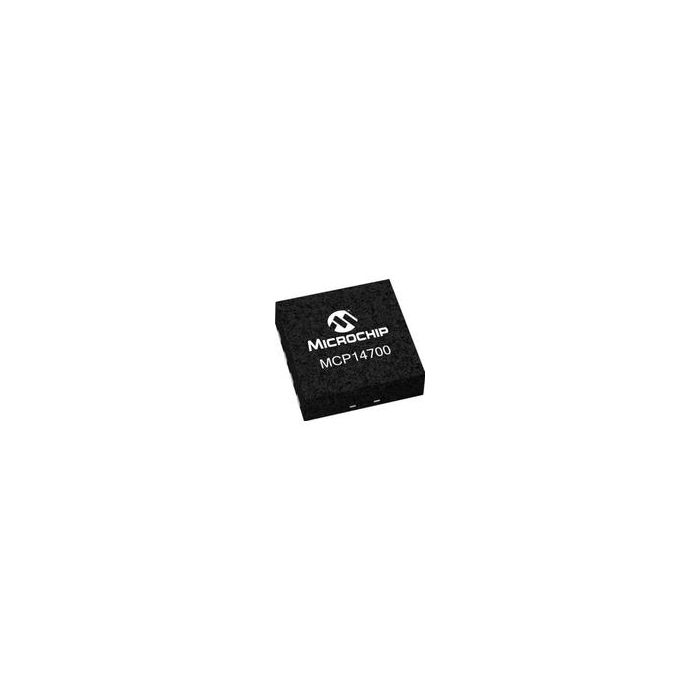

MCP14700-E/MF
| Do pobrania | Download |
|---|---|
| Main description | Driver 3.5A 2-OUT High and Low Side Non-Inv Automotive 8-Pin DFN EP Tube |
Driver 3.5A 2-OUT High and Low Side Non-Inv Automotive 8-Pin DFN EP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 5
- Inventory 8
- PCNs 54
- GIDEP-Alerts 2
- MaskPart MCP14700%EMF
- IntroductionDate Sep 01, 2009
Parametry
- Absolute Propagation Delay Time (ns) 36
- Bridge Type N/A
- Driver Configuration Non-Inverting
- Driver Type High and Low Side
- High and Low Sides Dependency Independent
- Input Logic Compatibility CMOS|TTL
- Maximum Fall Time (ns) 10(Typ)
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) 36
- Maximum Rise Time (ns) 10(Typ)
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.045(Typ)
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Minimum Storage Temperature (°C) -65
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) 1|1
- Peak Output Current (A) 3.5(Typ)
- Reference Voltage (V) N/A
- Special Features Synchronous|Undervoltage Lockout
- Supplier Temperature Grade Extended
- Type MOSFET
- Typical Input High Threshold Voltage (V) 1.6
- Typical Input Low Threshold Voltage (V) 1.2
