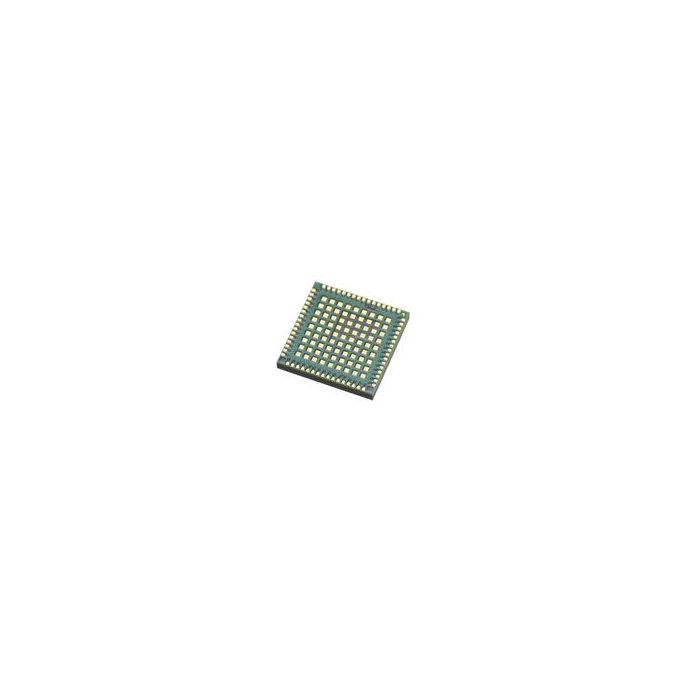

MC13224VR2

Więcej informacji
Do pobrania	Download
Main description	802.15.4 LR-WPAN 2480MHz 250Kbps 145-Pin LGA T/R

802.15.4 LR-WPAN 2480MHz 250Kbps 145-Pin LGA T/R

Informacje podstawowe

Antenna Mounting On Board
Application Residential and Commercial Automation|Lighting Control|Security|Access Control|Heating, Ventilation, Air-Conditioning (HVAC)|Automated Meter Reading (Amr)|Industrial Control
External Antenna Connector Type N/R
Flash Size (KB) 128
ISM Band 2.4GHz
Indoor Range N/A
Interface I2C/SPI/UART
Internal Antenna Type N/A
Maximum Current Consumption (RX) (mA) 22(Typ)
Maximum Current Consumption (TX) (mA) 29(Typ)
Maximum Data Rate (Kbps) 250(Typ)
Maximum Operating Frequency (MHz) 2480
Maximum Operating Supply Voltage (V) 3.6
Maximum Operating Temperature (°C) 105
Maximum Output Power N/A
Maximum Storage Temperature (°C) 125
Minimum Operating Frequency (MHz) 2405
Minimum Operating Supply Voltage (V) 2
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -55
Modulation Technique N/A
Module/IC Classification IC
Number of Channels 16
Outdoor Range N/A
Protocol Stack 802.15.4
RAM Size (KB) 96
Solutions AMR/ISM
Supplier Temperature Grade N/A
Typical Operating Supply Voltage (V) 2.7
Typical Sensitivity -96dBm
