MAX9724BETC+T
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Headphone 2-CH Stereo 0.063W Class-AB 12-Pin TQFN EP T/R |

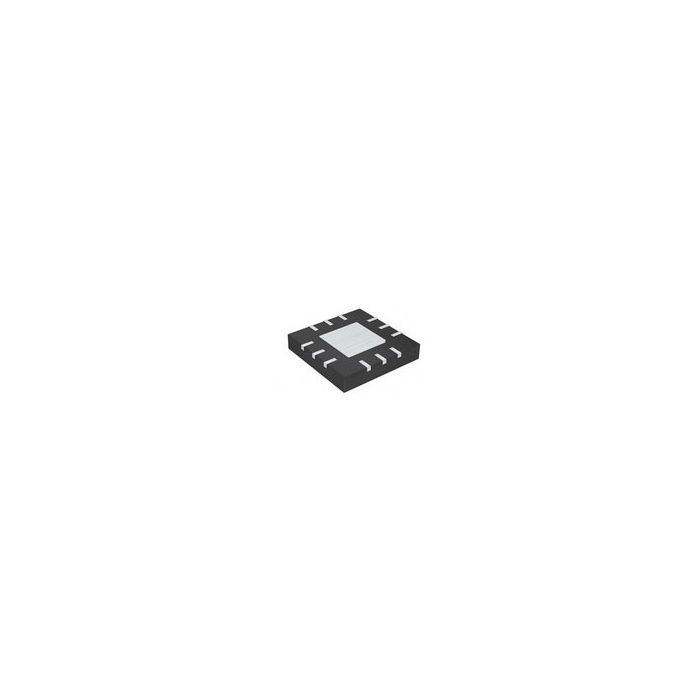

Audio Amp Headphone 2-CH Stereo 0.063W Class-AB 12-Pin TQFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 310
- Inventory 1
- PCNs 7
- MaskPart MAX9724BETC+%
- IntroductionDate May 01, 2005
Parametry
- Amplifier Type Class-AB
- Function Headphone
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 32
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 1333
- Maximum Quiescent Current (mA) 5.5@5V@-40C to 85C
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Output Signal Type Single
- Output Type 2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.02%@32Ohm@50mW|0.003%@1000Ohm
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 0.063x2@32Ohm
- Typical PSRR (dB) 86
- Typical Quiescent Current (mA) 3.5@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 3.522
