MAX9722BEUE+
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Headphone 2-CH Stereo 0.13W Class-AB 16-Pin TSSOP |

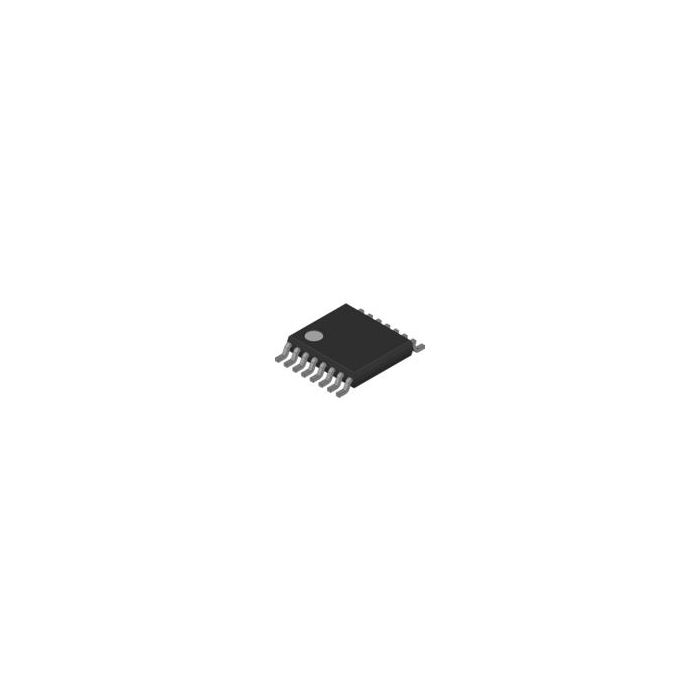

Audio Amp Headphone 2-CH Stereo 0.13W Class-AB 16-Pin TSSOP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 332
- Inventory 2
- PCNs 10
- GIDEP-Alerts 2
- MaskPart MAX9722BEUE+%
- IntroductionDate Oct 01, 2003
Parametry
- Amplifier Type Class-AB
- Function Headphone
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) 0.05(Typ)@5V
- Maximum Input Offset Voltage (mV) 5
- Maximum Load Resistance (Ohm) 32
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 755
- Maximum Quiescent Current (mA) 13@5V@-40C to 85C
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.4
- Output Signal Type Single
- Output Type 2-Channel Stereo
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.009%@32Ohm@125mW
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 0.13x2@32Ohm
- Typical PSRR (dB) 90
- Typical Quiescent Current (mA) 5.5@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 6.02
