MAX9716ETA+T
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono 1.4W Class-AB Automotive 8-Pin TDFN EP T/R |

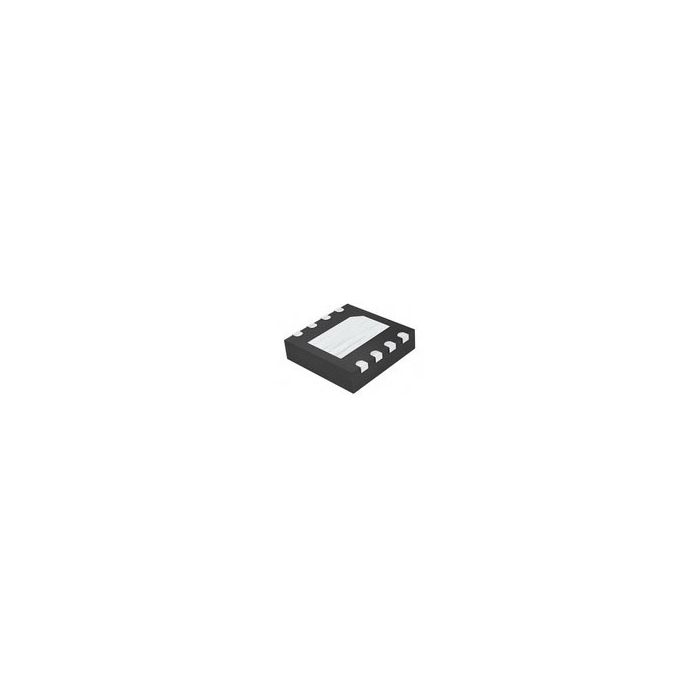

Audio Amp Speaker 1-CH Mono 1.4W Class-AB Automotive 8-Pin TDFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 309
- Inventory 3
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX9716ETA+%
- IntroductionDate Jan 01, 2004
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) 20
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 1951
- Maximum Quiescent Current (mA) 8@5V@-40C to 85C
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Output Signal Type Differential
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.024%@8Ohm@500mW
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 1.4x1@4Ohm
- Typical PSRR (dB) 80
- Typical Quiescent Current (mA) 4.3@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) N/A
